| Item No: |
GRA-CARDGR-ONE |
| List Price: |
$965.00 |
| Your Price: |
$771.99 |

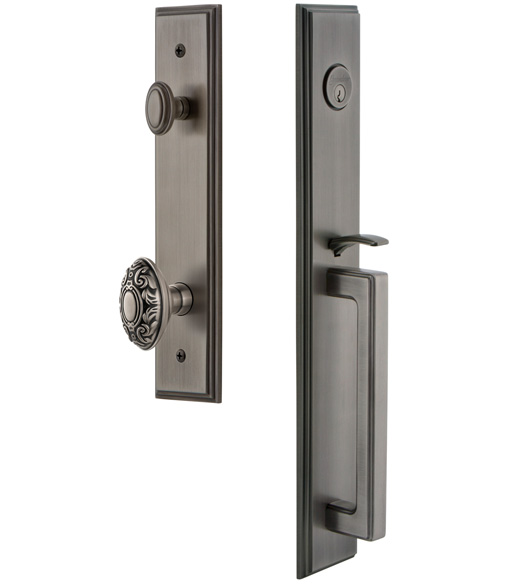

Grandeur CARDGR-ONE, Carre D Grip Handleset
The Classic Carre Entry Set with D Style Grip has a very traditional feel which makes it well suited to historic spaces. The D-Grip is designed to catch the stepped detailing on the backplate and carry it through the piece for a cohesive look that is timeless. The Carre D Grip Handleset is available in the most popular finish colors with a huge selection of interior trim knobs and levers. It will fit most pre-drilled doors that are 1-3/4 inches to 2-1/4 inches thick and have 2-3/8 inch or 2-3/4 inch backsets. Choose from single cylinder and dummy functions.
Features of the Grandeur One Piece D Grip Carre Handleset:
- Fits most pre-drilled doors.
- Ideal for doors that are 84 inches or taller.
- Solid forged brass construction.
- Lifetime Mechanical Warranty
- 10 Year Finish Warranty
Specifications of the Carre Handleset:
- Exterior Plate Height: 19"
- Exterior Plate Width: 3"
- Exterior Projection: 2"
- Interior Plate Height: 11"
- Interior Plate Width: 2-1/2"
- Deadbolt Throw: 1"
- Door Thickness: Adjustable 1-3/4" to 2-1/4"
- Backset: 2-3/8" or 2-3/4"
- Carre D-Grip Handleset Dimensions (PDF)
When Selecting a Function:
- Single Cylinder Handleset: From the exterior, a thumb piece operates the latch and a key operates the deadbolt. From the interior, the lever operates the latch and a thumbturn operates the deadbolt.
- Dummy Handleset: This handleset is does not function--neither locking nor latching.
Inside trim levers are handed. Click Here to determine left or right handed.
|
