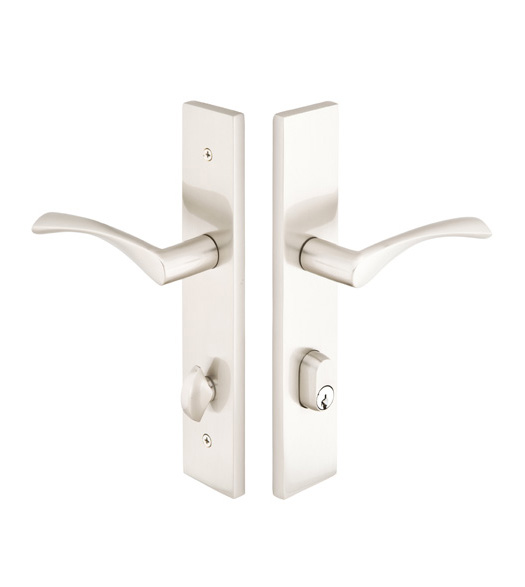

The Modern 2 x 10 Multi Point Handleset features Emtek's multipoint configuration # 6 which is designed to replace Milgard and Pella brand patio door trim. The American Cylinder is located below the lever and the center to center is 3-5/8 inches. It will fit doors 1-5/8 inches to 2-3/4 inches thick. Choose from a wide array of modern finishes and contemporary levers. The 2 x 10 Rectangular Multi Point Handleset with American Cylinder Below Handle is available in several functions so you'll be able to find one to suit your needs.

This multipoint trim set is intended to replace the trim from Milgard and Pella brand patio doors. The lock to lever distance is 3-5/8" (92 mm). This set does not come packaged with the multipoint lock mechanism (the vertical rods found in multipoint patio doors that secure the door to the frame) as those are typically preinstalled in multipoint doors and cannot be replaced.

Features and Specifications of the Brass Modern Multi Point Trim with Door Configuration #6:

• Material: Brass
• Overall Height: 10"
• Overall Width: 2"
• Distance Between Trim and Cylinder or Thumbturn (for Keyed, Passage, and Patio Functions): 3-5/8"
• Mounting Centers: 8-1/2"
• Plate Thickness: 3/8"
• Door Thickness: 1-5/8" - 2-3/4" please specify.
• Solid steel spindle.
• Emtek 16B5 Dimensions (PDF)

Available Functions:

• Dummy Pair, Active (inside): Active lever inside with fixed inactive lever outside. For use as a pull or to match trim. Normally used on inactive French door. Set includes: Two (2) backplates, Two (2) levers with spindles and mounting screws.
• Dummy Pair, Inactive: Fixed inactive levers both sides of door. For use as a pull or to match trim. Normally used on inactive French door. Set includes: Two (2) backplates, Two (2) levers with spindles and mounting screws.
• Passage: Active levers both sides of door. Set includes: Two (2) backplates, Two (2) levers with spindles, and mounting screws.
• Patio: Active levers both sides of door. Thumb turn inside to lock door. Set includes: Two (2) backplates, Two (2) levers with spindles, One (1) interior thumb turn and mounting screws.
• Keyed Entry: Active levers both sides of door. Keyed lock cylinder outside with thumb turn inside to lock door. Set includes: Two (2) backplates, Two (2) levers with spindles, Two (2) cylinder collars, One (1) american profile cylinder with key outside & thumb turn inside and mounting screws.

Choose any of the different levers to complete your handleset.

Select Function - Important Ordering Guide 16B4: Dummy Pair, Active (Fixed lever exterior/active lever interior) 16B5: Dummy Pair, Inactive (Fixed levers both sides of door) 16B2: Passage (Active levers both sides of door) 16B3: Patio (Active levers both sides of door and interior thumbturn) 16B1: Keyed Entry   Select Finish  US10B: Oil Rubbed Bronze US15: Satin Nickel US19: Matte Black US26: Polished Chrome US14: Polished Nickel US4: Satin Brass US3NL: Unlacquered Brass Add  $32.00   Select Trim    AG: Argos Lever   ATN: Athena Lever   BA: Basel Lever   HLO: Helios Lever   HEC: Hercules Lever   HER: Hermes Lever   LU: Luzern Lever   MC: Mercury Lever   POS: Poseidon Lever   SIO: Sion Lever   STU: Stuttgart Lever   TRT: Triton Lever   Select Door Thickness  1-5/8" - 1-15/16" Door Thickness 2" - 2-3/4" Door Thickness   Handing - Important Ordering Guide Right Handing Left Handing   Keying - Important Ordering Guide Non-Keyed (Passage, Patio, and Dummy Functions) I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
