Full Escutcheon Lausanne Handleset, Emtek 4819


Item No:  EMT-4819
List Price:  $671.00
Your Price:  $536.99

Emtek 4819, Lausanne Entry Door Handleset

The Full Escutcheon Lausanne Handleset is perfectly designed to create a sense of drama on your front door. The Full Escutcheon Plate is 17-1/2 inches tall and features a sleek, transitional design that is great on modern styled homes that have historic architectural elements. The Lausanne Entry Door Handleset will fit either 2-3/8 inch or 2-3/4 inch backsets and can accommodate doors from 1-3/4 inches to 3 inches thick. This front door lock is available in single cylinder and dummy functions. The single cylinder function is locked and unlocked by a key from the exterior and a thumbturn from the interior. The dummy function is nonfunctional, commonly used on the second door of a pair of double doors. The Lausanne Entrance Handleset is available in several beautiful finishes and has a huge selection of interior trim knobs and levers.

Features for the Transitional Lausanne Handleset:

  • Keyway: Schlage C
  • UL 180 minute fire rating
  • Hardened steel bolt.
  • Will fit standard 2-1/8" door preparations.

Specifications for the Emtek Lausanne Entrance Handleset:

  • Material: Brass
  • Exterior Plate Height: 17-1/2"
  • Exterior Plate Width: 2-1/2"
  • Exterior Projection: 2-3/4"
  • Exterior Grip Clearance: 1-7/16"
  • Exterior Grip Thickness: 1"
  • Interior Plate Height: 10-5/16"
  • Interior Plate Width: 2-1/2"
  • Door Thickness: 1-3/4" - 3" please specify
  • Backset: either 2-3/8" or 2-3/4"
  • Distance between Deadbolt and Lever Latch: 5-1/2" c.c.
  • Distance between Latch Bore to Bottom Mounting Hole: 8-5/8" c.c.
  • Emtek 4819 Specifications (PDF)
  • Emtek Tubular Entryset Template Specifications (PDF)

When Selecting a Function:

  • Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
  • Single Cylinder: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob/lever operates the latch.

Sold Individually

Emtek Finish Chart


Select Function - Important Ordering Guide

Select Finish

Select Door Thickness

Select Backset - Important Ordering Guide

Select Interior Trim
  AG-RH: Argos Lever (Right Handing)
  AG-LH: Argos Lever (Left Handing)
  ATN-RH: Athena Lever (Right Handing)
  ATN-LH: Athena Lever (Left Handing)
  BA-RH: Basel Lever (Right Handing)
  BA-LH: Basel Lever (Left Handing)
  DT-RH: Dumont Lever (Right Handing)
  DT-LH: Dumont Lever (Left Handing)
  GV-RH: Geneva Lever (Right Handing)
  GV-LH: Geneva Lever (Left Handing)
  HLO-RH: Helios Lever (Right Handing)
  HLO-LH: Helios Lever (Left Handing)
  HEC-RH :Hercules Lever (Right Handing)
  HEC-LH: Hercules Lever (Left Handing)
  HER-RH: Hermes Lever (Right Handing)
  HER-LH: Hermes Lever (Left Handing)
  LU-RH: Luzern Lever (Right Handing)
  LU-LH: Luzern Lever (Left Handing)
  MC-RH: Mercury Lever (Right Handing)
  MC-LH: Mercury Lever (Left Handing)
  POS-RH: Poseidon Lever (Right Handing)
  POS-LH: Poseidon Lever (Left Handing)
  SIO-RH: Sion Lever (Right Handing)
  SIO-LH: Sion Lever (Left Handing)
  STU-RH: Stuttgart Lever (Right Handing)
  STU-LH: Stuttgart Lever (Left Handing)
  TRT-RH: Triton Lever (Right Handing)
  TRT-LH: Triton Lever (Left Handing)
  LSKN-RH: Square Knurled Lever (Right Handing)
  LSKN-LH: Square Knurled Lever (Left Handing)
  BN: Bern Knob
  OCT: Octagon Knob
  OR: Orb Knob
  ROU: Round Knob
  SQU: Square Knob
  MDC: Modern Disc Crystal Knob
  MSC: Modern Square Crystal Knob

Keying - Important Ordering Guide


Quantity

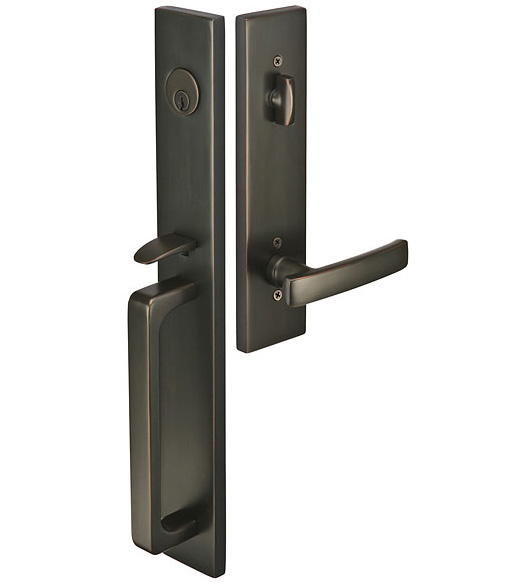

  Lausanne Tubular Handlset

  Full Escutcheon Lausanne Handleset, Emtek 4819
