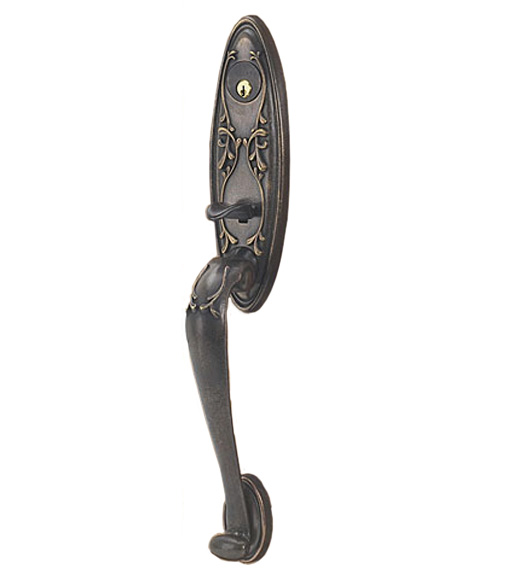

The Da Vinci Mortise Handleset has an ornately styled oval mount that will surely add a bit of the old world beauty that is so often lost in the modern world. This traditional Oval Da Vinci Mortise Entrance Handleset is available in either dummy or single cylinder functions. The single cylinder ANSI F20 mortise box can be toggled to lock automatically upon closing the door. The Ornate Da Vinci Mortise Entrance Handleset will fit either 2-1/2 inch or 2-3/4 inch backsets and can accommodate doors from 1-3/4 inches to 2-3/4 inches thick. This classic door handle is made out of lost wax cast bronze; choose from a flat black bronze finish or a medium bronze finish.

Features of the Emtek Da Vinci Handleset and the ANSI F20 Heavy Duty Lock Body: Keyway: Schlage C UL 180 minute fire rating Deadlocking latch bolt with saw-proof inserts. Anti-pick security latch. When the deadbolt is engaged, the outside thumb press is automatically locked. The latch bolt is retracted by the thumb press / knob / lever on either side, except when the outside thumb press is locked by stop button, then it can only be opened from the exterior by use of the key. Making it ideal for doors you want to automatically lock. This feature can be easily toggled on and off by pressing the stop and release button on the mortise box face. Operating the interior trim retracts both the deadbolt and the latch bolt for emergency egress.

Specifications of the Emtek Oval Da Vinci Mortise Entrance Handleset:

• Material: Cast Bronze
• Exterior Overall Height: 18-1/2"
• Exterior Width: 3"
• Exterior Bottom Mount Diameter: 1-13/16" x 3"
• Exterior Grip Thickness: 1-9/16"
• Exterior and Interior Plate Thickness: 1-1/16""
• Interior Height: 10"
• Interior Width: 3"
• Door Thickness: 1-3/4" - 2-5/8" please specify
• Backset: either 2-1/2" or 2-3/4"
• Emtek 3331 Specifications (PDF)
• Emtek ANSI F20 Mortise Box Specifications (PDF)
• Emtek ANSI F20 Mortise Installation Instructions (PDF)

When Selecting a Function:

• Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
• Single Cylinder: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob/lever operates the latch.

Sold Individually

Select Function - Important Ordering Guide 3031: Full Dummy Set 3331: Single Cylinder Add  $284.00   Select Finish  FB: Flat Black Bronze Patina MB: Medium Bronze Patina   Select Door Thickness  1-3/4" Door Thickness 1-7/8" - 2-1/4" Door Thickness 2-3/8" - 2-5/8" Door Thickness   Select Interior Trim    MDI: Medici Lever   NA: Napoli Lever   OCL: Octagon Lever   PD: Padua Lever   OCK: Octagon Knob   PA: Parma Knob   PT: Petal Knob   LW: Lowell Clear Crystal Knob   BL: Bristol Clear Crystal Knob   HT: Hampton Clear Crystal Knob   WS: Windsor Clear Crystal Knob   Select Door Handing & Door Swing - Important Ordering Guide Left Hand Door, Out-swing Left Hand Door, In-swing Right Hand Door, Out-swing Right Hand Door, In-swing   Select Backset - Important Ordering Guide 2-1/2" Backset 2-3/4" Backset   Keying - Important Ordering Guide Non-Keyed (Full Dummy Function) I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
