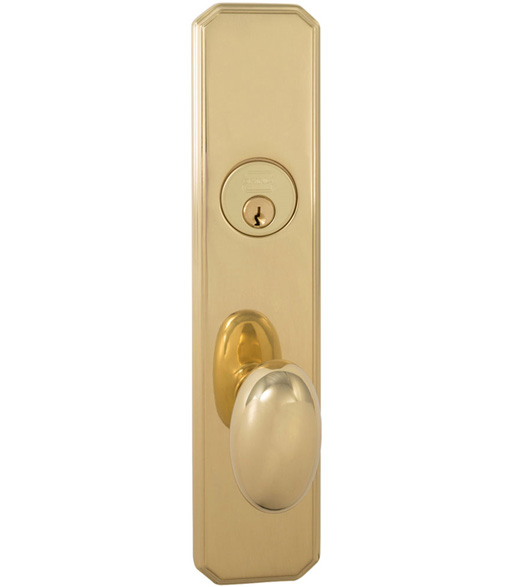

When we look at this mortise entryset, we think of opulence. It has a sleek, transitional design that is perfect on grand homes of all shapes and sizes. The Beverly Hills Mortise Handleset is built to stand out and will add an air of stately traditional beauty with just enough of a modern touch that it will look great on historic homes as well as new construction. Choose from several popular finishes. The Beverly Hills Egg Knob Mortise Entrance Set is available in a wide selection of functions.

Also available for standard pre-drilled doors: Omnia D11432

Features of the Beverly Hills Mortise Lockset:

• Keyway: Schlage "C"
• Tough, non rusting materials used throughout.
• Mortise case is heavy wrought steel with zinc dichromate finish for corrosion resistance.
• Deadbolt: Full 1" Throw, Solid Brass with Saw-proof Insert.
• UL Listed 3 Hour
• ANSI A156.13.2005, Grade 1 Lock

Specifications for Omnia 11432 Egg Knob Mortise Entryset:

• Material: Brass
• Backplate Height: 10-5/8"
• Backplate Width: 2-3/8"
• Knob Height: 2-1/2"
• Knob Projection: 2-7/8"
• Doors Thickness: Optional, 1-3/4" - 2-1/4" Thick Doors (Contact Us if doors are thicker)
• Backset: 2-1/2" or 2-3/4"
• 2-1⁄2” b.s.: with 3-7⁄8” minimum stile
• 2-3⁄4” b.s.: with 4-1⁄2” minimum stile
• Front: Adjustable armored steel front, with 8" x 1-1/4" solid brass faceplate.
• Strike: Solid brass curved lip strike.4-7⁄8” x 1-1⁄4” x lip 1-1⁄4” to center.
• Omnia Mortise Lockset Dimensions and Specifications (PDF)

When Selecting a Function:

• Dummy Pair: Stationary both sides of door. Fixed knobs, non-functioning. Used as door pulls or to match trim.
• Passage (Hall / Closet): The latch is operated by a knob from either side.
• Privacy (Bathroom / Bedroom): The latch operates by a knob from either side. Deadbolt is operated by a turnpiece inside and emergency key outside. Turning inside knob will retract both deadbolt and latchbolt at the same time.
• Single Cylinder Entry: Latchbolt operates by knob from either side except when outside trim is locked by stop-button; then opens by key outside, by knob inside. Deadbolt activated by key outside and by turnpiece inside.
• Double Cylinder Entry: Latchbolt operates by knob from either side except when outside trim is locked by stop-button; then opens by key outside, by knob inside. Deadbolt activated only by key from either side.
• Panic Proof Entry: Latchbolt operates by knob from either side except when outside trim is locked by stop-button. Deadbolt activated by key outside and by turnpiece inside. Turning inside knob will retract both deadbolt and latchbolt at the same time.
• Storeroom: Latchbolt operates by knob inside and by key outside. The outside knob is rigid. Auxiliary latchbolt deadlocks latchbolt.

Select Function - Important Ordering Guide   11432-PD: Dummy Pair   11432-N: Passage (Hall / Closet) Add  $264.80   11432-L: Privacy (Bathroom / Bedroom) Add  $304.00   11432-A: Single Cylinder Entry Add  $357.60   11432-AC: Double Cylinder Entry Add  $357.60   11432-F: Panic Proof Entry Add  $357.60   11432-EW: Storeroom Add  $357.60   Select Finish  US3: Polished Brass SB: Shaded Bronze US26: Polished Chrome US26D: Satin Chrome US10B: Oil Rubbed Bronze Add  $49.60   Select Door Thickness  1-3/4" Door Thickness 2" Door Thickness 2-1/4" Door Thickness   Select Backset - Important Ordering Guide 2-1/2" Backset 2-3/4" Backset   Select Door Handing & Door Swing - Important Ordering Guide LHR: Left Hand Door, Out-swing LH: Left Hand Door, In-swing RHR: Right Hand Door, Out-swing RH: Right Hand Door, In-swing   Keying - Important Ordering Guide Non-Keyed (Dummy, Passage, and Privacy) I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
