| Item No: |
INX-RA243 |
| List Price: |
$118.00 |
| Your Price: |
$94.99 |

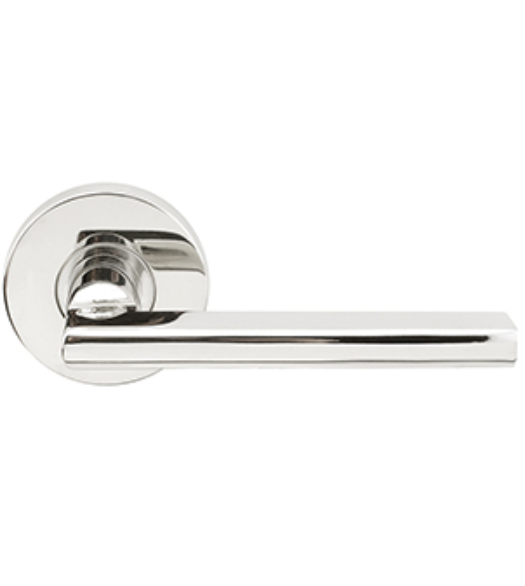

INOX RA243, Sunrise Lever with Round Rose
The Solid Stainless Steel Sunrise Lever is available in passage, privacy, and dummy functions. Choose from oil rubbed bronze, satin stainless steel, and polished stainless steel finishes. The Sunrise Lever with Round Rose will fit most standard predrilled doors that are 1-3/8 to 1-3/4 inches thick with 2-3/8 inch or 2-3/4 inch backsets.
Features of the Stainless Steel Sunrise Leverset:
- Fits most standard door cut outs (2-1/8" pre-drilled doors).
- Solid stainless steel lever.
- Latch: 28 Degrees Retraction (TL4 Latch)
- Concealed Installation
- Sold as complete set.
- Easy to install.

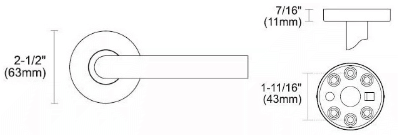

Specifications of the INOX 243 Sunrise Lever with RA Rose:
- Material: 304 Stainless Steel
- Lever Length: 5-3/64"
- Lever Projection: 2-3/32"
- Rose Diameter: 2-1/2"
- Rose Projection: 7/16"
- Door Thickness: 1-3/8" to 1-3/4"
- Backset: 2-3/8" or 2-3/4"
- Hub and Spindle: 5/16" (8mm) Square
- Latch Faceplate: 1" x 2-1/4" Standard Square Corner
- Latch Strike: Full Lip Strike and T-Strike with Square Corners.
Available Functions:
- Single Dummy: No door latch. Stationary door lever on one side of the door. Package Includes: 1 lever, 1 rose, and mounting screws.
- Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 levers, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
- Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy push button and retract the door latch. Package Includes: 2 levers, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
Note: Single Dummy is Handed. All other functions are non-handed. Handing Guide
|
