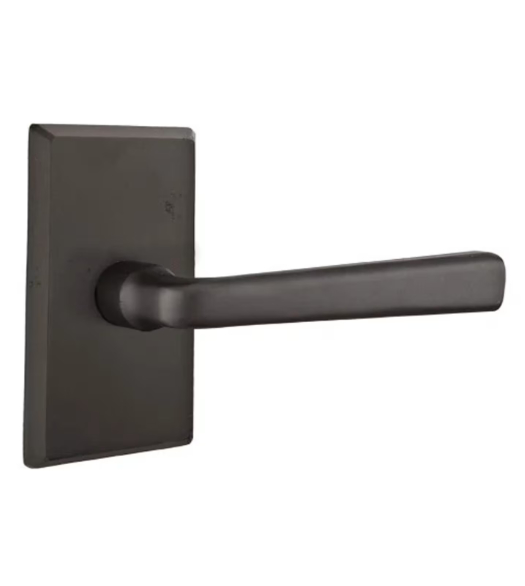

The Cimarron Lever with Rectangular Rose has a classic shape that really makes it stand out. The lever itself is comfortable in the hand while the #3 rose brings an elegance that really makes it something special. In addition, this set features Emtek's concealed fastener mechanism so there are no exposed screws. The Cimarron Sandcast Bronze Leverset with #3 Rectangular Rose will fit 1-3/8 inch to 3 inch thick doors with either 2-3/8 inch or 2-3/4 inch backsets. It is available in dummy, passage, and privacy functions and comes packaged as an easy to install complete set. Choose from flat black bronze, medium bronze, and white bronze finishes for a look that accents the Early American style that you love. The Cimarron Lever with Rectangular Rose CF will fit most standard pre doors cut-outs.

Sandcasting is a process for casting metal in sand molds. The mold is made by packing the sand around a pattern. Molten bronze is then poured into a mold cavity formed out of sand. Each sand mold is used only once. The sand is then recycled for the next piece.

Features of the Cimarron Door Lever with #3 Rectangle Rose:

• Fits standard door cut outs (2-1/8" pre-drilled doors).
• Concealed screw rose on privacy and passage functions. Dummy functions are surface mounted (rosette screws to the door's face).
• Solid bronze lever and trim rose.
• Sold as complete set.
• Easy to install.

Specifications of the Cimarron Leverset with #3 Rectangular Rose:

• Material: Sandcast Bronze
• Lever Length: 4-7/8"
• Lever Projection: 2-3/8"
• Clearance: 1-9/16"
• Rose Height: 4-1/2"
• Rose Width: 2-1/2"
• Door Thickness: 1-3/8 - 3"
• Backset: 2-3/8" or 2-3/4"

Available Functions:

• Double Dummy: No door latch. Door levers on both sides of the door. Package Includes: 2 levers, 2 roses, and mounting screws.
• Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 levers, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
• Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy push button and retract the door latch. Package Includes: 2 levers, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.

Levers are Handed. Handing Guide

Select Function - Important Ordering Guide C7054CR: Double Dummy C7104CR: Passage (Hall or Closet) C7204CR: Privacy (Bedroom or Bathroom)   Select Finish  FB: Flat Black Bronze MB: Medium Bronze TWB: Tumbled White Bronze   Select Door Thickness  1-3/8" - 1-15/16" Door Thickness 2" - 2-7/16 Door Thickness 2-1/2" - 3" Door Thickness   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Select Handing - Important Ordering Guide RH: Right Handing LH: Left Handing
