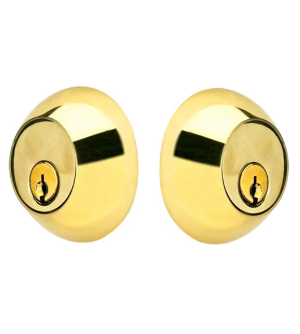

The Regular Double Cylinder Deadbolt will fit most pre-drilled doors. It will fit doors with 2-3/4 inch or 2-3/8 inch backsets with thicknesses ranging from 1-3/8 inches to 3 inches. This is a double cylinder deadbolt so the latch is thrown and retracted by key on the interior and exterior.

Double Cylinder: The deadbolt is thrown and retracted by a key from exterior and interior

Also Available Regular Single Cylinder Deadbolt

Features of the Regular Double Cylinder Deadbolt:

• Keyway: Schlage C
• Solid brass collar and rosette.
• Hardened steel bolt.
• Will fit standard 2-1/8" door preparations.

Specifications of the Regular Double Cylinder Deadbolt:

• Exterior Diameter: 2-3/8"
• Interior Diameter: 2-1/2"
• Exterior Projection: 13/16"
• Interior Projection: 1-1⁄4"
• Door Thickness: 1-3/8" to 2-1/2"
• Backset: 2-3/8" or 2-3/4"
• Emtek 8350 Installation Instructions (PDF)

Select Door Thickness  1-3/8" - 1-3/4" Door Thickness 1-3/4" - 2-1/2" Door Thickness   Select Finish  US10B: Oil Rubbed Bronze US15: Satin Nickel US15A: Antique Nickel US19: Matte Black US26: Polished Chrome US14: Polished Nickel US7: French Antique US3: Polished Brass US4: Satin Brass US3NL: Unlacquered Brass   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Keying - Important Ordering Guide I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
Quantity
