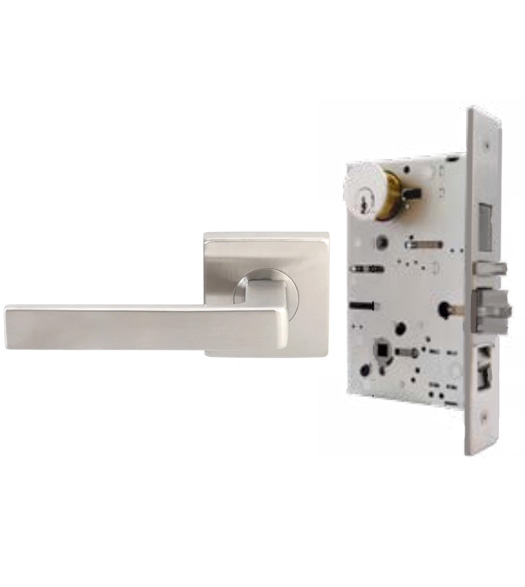

This is a mortise leverset made by Inox. The Tokyo Mortise Lockset is available in several functions. It will fit standard doors with 2-3/4 inch backsets that are 1-3/4 inches thick. The Tokyo Lever with Square Rose and Mortise is made out of stainless steel.

Features of the XSE Tokyo Mortise Leverset:

• Hardened knurled brass nut.
• Heavy-duty wire torsion spring.
• Threaded rose cover for easy installation.
• Solid Stainless Steel lever, cast Stainless Steel sub-rose.
• Passed 1 million cycle testing.
• ANSI/BHMA A156.13 Grade 1 Mortise Locks
• UL listed for 3-hour fire door.

Specifications of the Stainless Steel Tokyo Leverset with Mortise:

• Material: Stainless Steel
• Lever Length: 4-15/16"
• Rose Length: 2-9/16" square
• Door Thickness: 1-3/4"
• Backset: 2-3/4"
• Case Size: 4" x 6-7/32"
• Lock Front: 1-1/4" x 8" x 15/16"
• Center to Center Lever to Cylinder: 3-7/8" (98mm)
• Latchbolt: 3/4" (19mm) anti-friction throw
• Cylinder: Schlage C keyway
• Lever Spindle 8mm x 8mm square
• Strike: ANSI stainless steel strike, 4-7/8" x 1-1/4"curved, field reversible
• Handing: Please specify

Available Functions for Inox X Series Mortise Lever Sets:

• Passage (ANSI: F01): Outside and inside lever are always unlocked.
• Privacy (ANSI: F22): Inside thumb-turn locks and unlocks outside lever. Outside release button with slot for emergency unlock from outside. Inside lever is always unlocked.
• Storeroom (ANSI: F07): Key from outside locks and unlocks latchbolt. Outside lever is always inactive. No thumb-turn inside. Inside lever allows emergency egress.
• Classroom (ANSI: F05):Key from outside locks and unlocks outside lever to operate latchbolt. No thumb-turn inside. Inside lever allows emergency egress.
• Office (ANSI: F04): Key outside, thumb-turn inside. Outside lever free-wheel when latchbolt is locked. No deadbolt. Inside lever allows emergency egress. Built -in toggle function.

Select Function - Important Ordering Guide INX-XSE354MC7010: Passage (ANSI: F01) INX-XSE354MC7040: Privacy (ANSI: F22) Add  $16.00 INX-XSE354MC7080: Storeroom (ANSI: F07) Add  $40.00 INX-XSE354MC7070: Classroom (ANSI: F05) Add  $40.00 INX-XSE354MC7050: Office (ANSI: F04) Add  $40.00   Select Finish  US32D: Satin Stainless Steel US32: Polished Stainless Steel Add  $16.00 19G: Flat Black Add  $16.00   Select Door Handing and Swing - Important Ordering Guide Left Hand Door, Outswing Left Hand Door, Inswing Right Hand Door, Outswing Right Hand Door, Inswing   Keying - Important Ordering Guide I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
