| Item No: |
INX-SE345 |
| List Price: |
$118.00 |
| Your Price: |
$94.99 |
INOX SE345, Stainless Steel Tokyo Lever with Square SE Rose

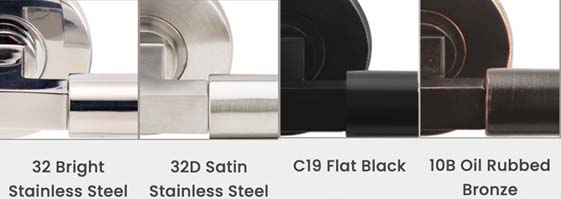

The Tokyo Lever with Square Rose is for use in residential and commercial applications. It will fit 1-3/8 inch to 1-3/4 inch thick doors with standard backsets of 2-3/8 inches or 2-3/4 inches. The Stainless Steel Tokyo Lever with Square SE Rose is available in a few popular finishes. Choose from dummy, passage, or privacy functions.
Features of the Stainless Steel Tokyo Leverset:
- Fits most standard door cut outs (2-1/8" pre-drilled doors).
- Hollow stainless steel lever.
- Latch: 28 Degrees Retraction (TL4 Latch)
- Concealed Installation
- Sold as complete set.
- Easy to install.
Specifications of the Stainless Steel Tokyo Leverset:
- Material: 304 Stainless Steel

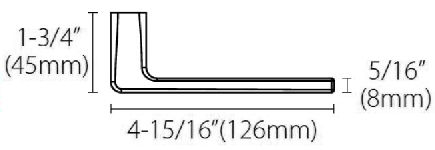

- Lever Length: 4-15/16"
- Lever Projection: 1-3/4"
- Rose Length: 2-3/8" square
- Rose Projection: 7/16"
- Door Thickness: 1-3/8" to 1-3/4"
- Backset: 2-3/8" or 2-3/4"
- Hub and Spindle: 5/16" (8mm) Square
- Latch Faceplate: 1" x 2-1/4" Standard Square Corner
- Latch Strike: Full Lip Strike and T-Strike with Square Corners.
Available Functions:
- Single Dummy: No door latch. Stationary door lever on one side of the door. Package Includes: 1 lever, 1 rose, and mounting screws.
- Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 levers, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
- Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy push button and retract the door latch. Package Includes: 2 levers, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
Note: Single Dummy is Handed. All other functions are non-handed. Handing Guide
|
