| Item No: |
OMN-D12943 |
| List Price: |
$323.00 |
| Your Price: |
$242.25 |

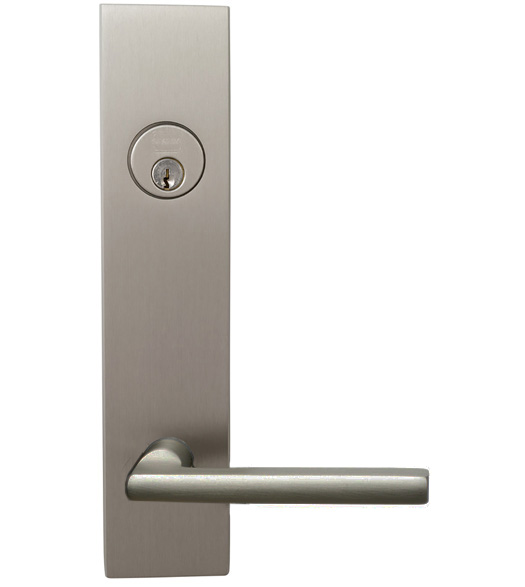

Omnia D12943, Jacksonville Lockset
The Jacksonville Entryset is made with the attention to quality and detail you would expect from Omnia Industries--a leader in door hardware. This Tubular Jacksonville Lockset is available in a wide selection of contemporary finish colors. Choose from dummy or single cylinder functions. This Modern Entry Set will fit most pre drilled doors.
Also available matching Jacksonville Door Lever
Features of the Modern Jacksonville Lockset:
- Keyway: Schlage "C"
- Will fit standard 2-1/8" door preparations.
- Will fit narrow stiles. For Door with a 2-3⁄8” backset, stile width can be as narrow as 3-5⁄8”
Specifications for the Omnia D12943 Jacksonville Lever Lockset:
- Material: Brass
- Height: 10-9/16"
- Width: 2-3/8"
- Bore Hole Spacing (distance between deadbolt and lever latch): 5-1/2" Center to Center
- Doors Thickness: 1-3/4" - 2" Thick Doors (Contact Us if doors are thicker)
- Backset: 2-3/8" or 2-3/4"
- Deadbolt: Full 1" Throw, Solid Brass with saw-proof Insert.
- Strike: "T" strike
- Each set contains door levers, backplates, latches, spindle, and all necessary screws and templates. Key functions are supplied with lock cylinder/s and turnpiece as applicable.
- Omnia Entry Lockset Dimensions & Specs (PDF)
Available Functions
- Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
- Single Cylinder: From the exterior, a lever operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob/lever operates the latch.
|
