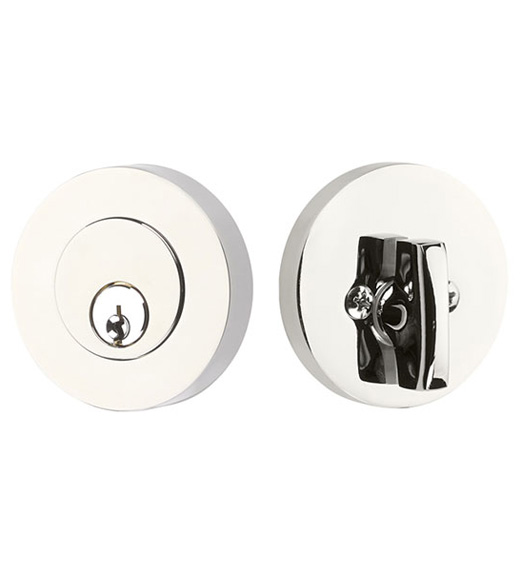

The Modern Disc Deadbolt is a stylish, round single cylinder lock suitable for most house facelifts. This high-quality deadbolt is available in many contemporary finish color options. It will fit most pre-drilled doors, so changing your old front door lock will be super easy.

Single Cylinder: The deadbolt is thrown and retracted by a key from exterior and by a thumb turn from the interior

Features of the Modern Disc Square Single Cylinder Deadbolt:

• Keyway: Schlage C
• Solid brass collar and rosette.
• Hardened steel bolt.
• Packaged with a extension collar for thin doors.
• Will fit standard 2-1/8" door preparations.

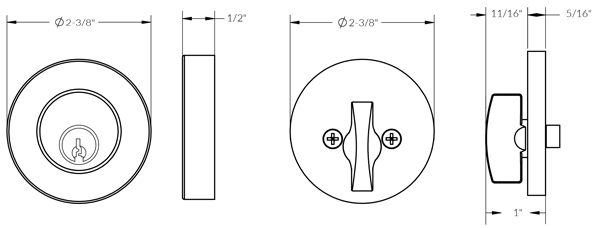

Specifications of the Contemporary Door Lock:

• Diameter: 2-3/8"
• Exterior Projection: 1/2"
• Interior Projection: 1"
• Door Thickness: 1-3/8" to 3-1/4"
• Backset: 2-3/8" or 2-3/4"
• Emtek 8423 Specifications (PDF)

Select Finish  US10B: Oil Rubbed Bronze US15: Satin Nickel US19: Matte Black US26: Polished Chrome US14: Polished Nickel US4: Satin Brass US3NL: Unlacquered Brass Add  $32.00   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Select Door Thickness  1-3/8" - 1-7/8" Door Thickness 2" - 2-1/8" Door Thickness 2-1/4" - 2-7/8" Door Thickness 3" - 3-1/4" Door Thickness   Keying - Important Ordering Guide I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
