| Item No: |
EMT-5052SIO |
| List Price: |
$235.00 |
| Your Price: |
$188.99 |

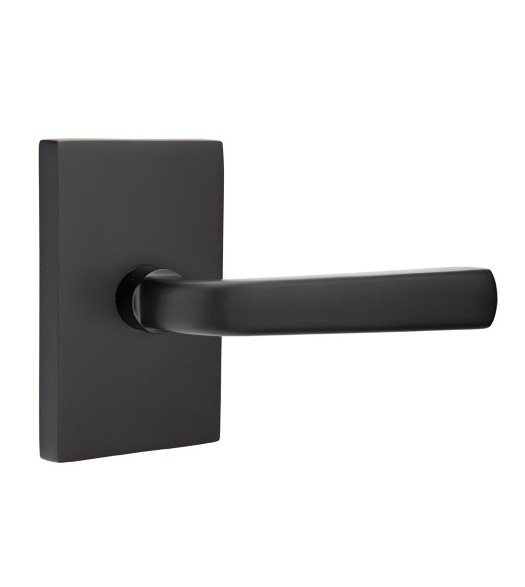

Emtek 5052SIO Sion Lever with Modern Rectangular Rosette
The Sion Lever with Rectangular Rose is a modern leverset great for your home remodel. It will fit most pre-drilled doors up to 3 inches thick. This Sion Lever with Modern Rectangular Rosette is available in dummy, passage, and privacy functions. Choose from some of the most popular finish colors for today's design trends.
Features of the Contemporary Sion Door Lever with Modern Rectangle Rose:
- Fits standard door cut outs (2-1/8" pre-drilled doors).
- Lever is surface mounted (rosette screws to the door's face).
- Solid brass lever and trim rose.
- Sold as complete set.
- Easy to install.
Specifications of the Modern Sion Leverset with Rectangular Rose:
- Material: Brass
- Lever Length: 4-5/8"
- Lever Projection:2-1/4"
- Clearance: 1-1/2"
- Rose Height: 4"
- Rose Width: 2-1/2"
- Door Thickness: 1-1/4 - 3"
- Backset: 2-3/8" or 2-3/4"
Available Functions:
- Double Dummy: No door latch. Door levers on both sides of the door. Package Includes: 2 levers, 2 roses, and mounting screws.
- Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 levers, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
- Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy push button and retract the door latch. Package Includes: 2 levers, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
Levers are Handed. Handing Guide
|
