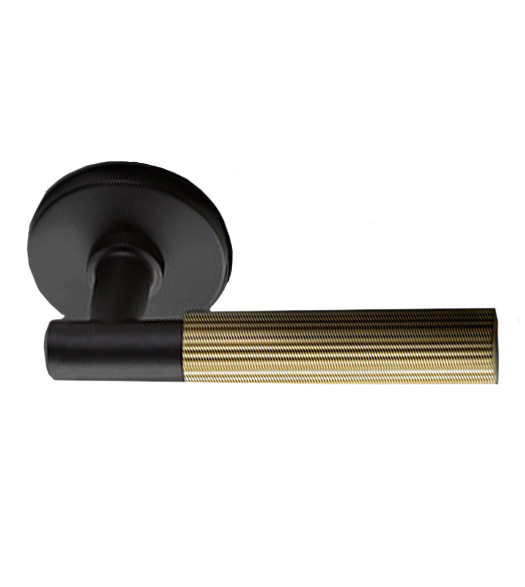

The Black and Satin Brass Reeded Leverset features a straight knurled lever for maximum design impact. This T-Bar Straight Knurled Lever with Disk Rose is a stunning example of the industrial chic design aesthetic. It has a two-toned finish pairing of satin brass and matte black for a stunning end product that is modern. The Two-Tone Leverset with Round Rose will fit most pre-drilled doors that are between 1-1/4 inches to 3 inches thick with either 2-3/8 inch or 2-3/4 inch backsets. Choose from dummy, passage, and privacy functions.

Features of the T-Bar Straight Knurled Lever with Disk Rosette:

• Fits standard door cut outs (2-1/8" pre-drilled doors).
• Lever is surface mounted (rosette screws to the door's face).
• Solid brass lever and trim rose.
• Sold as complete set.
• Easy to install.

Specifications of the Black and Satin Brass Reed Leverset with Round Rose:

• Material: Brass
• Lever Finish: Satin Brass
• Stem Finish: Matte Black
• Rose Finish: Matte Black
• Lever Length: 5-3/8"
• Lever Projection: 2-1/8"
• Clearance: 1-1/4"
• Rose Diameter: 2-1/2"
• Door Thickness: 1-1/4 - 3"
• Backset: 2-3/8" or 2-3/4"

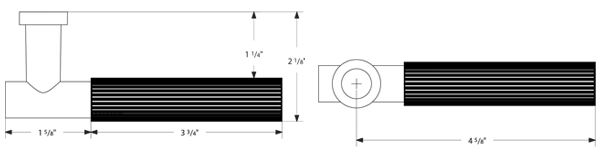

• Emtek Knurled Lever Dimensions Diagram (PDF)

Available Functions:

• Double Dummy: No door latch. Door levers on both sides of the door. Package Includes: 2 levers, 2 roses, and mounting screws.
• Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 levers, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
• Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy push button and retract the door latch. Package Includes: 2 levers, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.

Levers are Handed. Handing Guide

This Emtek Select Brass Lever is assembled to order—allowing the finishes to be custom designed. Please Contact Us with your requirement or if you have any questions.

Select Function - Important Ordering Guide 5059TASK: Double Dummy 5109TASK: Passage (Hall or Closet) 5209TASK: Privacy (Bedroom or Bathroom)   Select Door Thickness  1-1/4" - 2" Door Thickness 2" - 2-1/2" Door Thickness 2-1/2" - 3" Door Thickness   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Select Handing - Important Ordering Guide RH: Right Handing LH: Left Handing
