| Item No: |
EMT-8521C |
| List Price: |
$186.00 |
| Your Price: |
$148.99 |

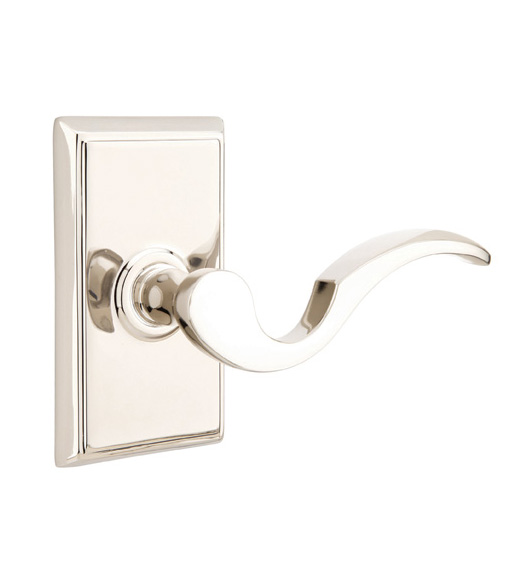

Emtek 8521C, Cortina Lever with Rectangular Rose
The Cortina Lever with Rectangular Rose is a classic--a great choice for traditional homes. This drop-tail leverset will look fabulous in any of the beautiful finishes in which it is available. The Cortina Lever with Rectangular Rose is available in dummy, passage, and privacy functions. It will fit 1-1/4 inch to 3 inch thick doors and is available in either 2-3/8 inch or 2-3/4 inch backsets.
Also Available Keyed Cortina Lever with Rectangular Rose
Features of the Cortina Drop Tail Lever with Rectangular Rose:
- Fits standard door cut outs (2-1/8" pre-drilled doors).
- Lever is surface mounted (rosette screws to the door's face).
- Solid brass lever and trim rose.
- Sold as complete set.
- Easy to install.
Specifications of the Traditional Cortina Leverset:
- Material: Brass
- Lever Length: 4-3/8"
- Lever Projection: 2-1/4"
- Clearance: 1"
- Rose Height: 4-3/8"
- Rose Width: 2-9/16"
- Door Thickness: 1-1/4 - 3"
- Backset: 2-3/8" or 2-3/4"
Available Functions:
- Double Dummy: No door latch. Door levers on both sides of the door. Package Includes: 2 levers, 2 roses, and mounting screws.
- Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 levers, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
- Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy push button and retract the door latch. Package Includes: 2 levers, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
Levers are Handed. Handing Guide
|
