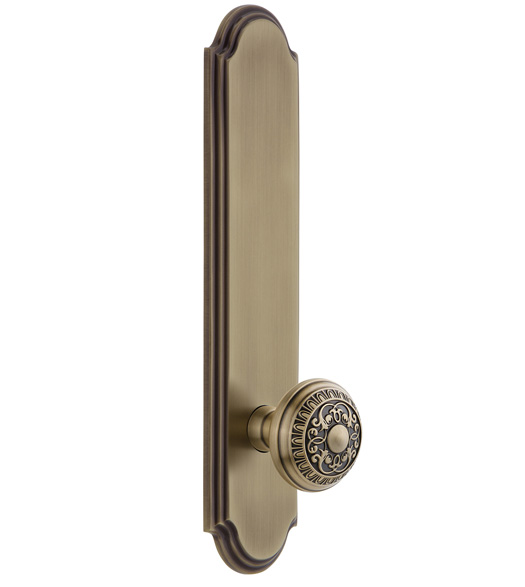

The Windsor Knob with Arc Tall Plate is beautiful and elegant. It is a fancy knobset while not being overly ornate. The Windsor Knob with Arc Plate is available in a wide array of finish colors, from classic to finishes that popular in today's market, so you can make a look that is all your own. Choose from passage, privacy, and dummy functions.

Also Available Windsor Knob with Arc Tall Plate Single Cylinder Entryset

Features of the Windsor Knob with Arc Rose:

• Easy to install.
• Lifetime Mechanical Warranty
• 10 Year Finish Warranty

Specifications of the Windsor Knob with Arched Plate:

• Material: Brass
• Knob Diameter: 2.28"
• Knob Projection: 2.29"
• Plate Height: 11"
• Plate Width: 2-1/2"
• Plate Projection: .39"
• Mounting Centers: 8-1/4"
• Door Thickness: Adjustable 1-3/8" to 2"
• Backset: 2-3/8" or 2-3/4"
• Grandeur ARCWIN19 Dimensions (PDF)

When Selecting A Function:

• Single Dummy: A surfaced mounted, non-working knob. Non-locking and non-latching trim for one side of door. This inactive pull is usually used to match trim.
• Double Dummy: Surfaced mounted, non-working knobs. Non-locking and non-latching trim for both sides of door. These inactive pulls are usually used to match trim.
• Passage (hall or closet): Latches but does not lock. The latch is activated by turning the either of the two knobs.
• Privacy (bedroom or bathroom): Latches and can be locked. Can be locked from the inside with a push-button.

Sold Individually



Select Function - Important Ordering Guide Single Dummy Double Dummy Add  $195.00 Passage (hall or closet) Add  $195.00 Privacy (bedroom or bathroom) Add  $195.00   Select Finish  VB: Vintage Brass LB: Lifetime Polished Brass PB: Polished Brass TB: Timeless Bronze SN: Satin Nickel PN: Polished Nickel AP: Antique Pewter   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset
Quantity
