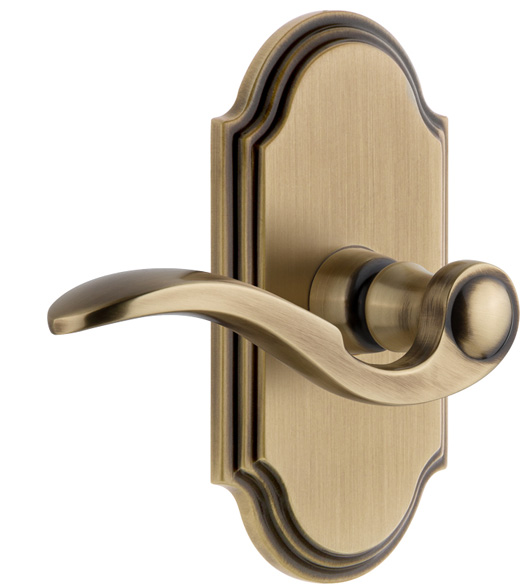

With elegance and beauty, the traditional Bellagio Lever with Arc Rose is a great addition to any home. It features a stunning design that is also durable. The Arc Rose with Bellagio Lever is backed by a Lifetime Mechanical Warranty. This leverset will fit most pre-drilled doors. Choose from dummy, passage, and privacy functions.

Features of the Grandeur ARCBEL Arc Short Plate with Bellagio Lever:

• Made out of solid forged brass.
• Easy to install.
• Lifetime Mechanical Warranty
• 10 Year Finish Warranty

Specifications of the Bellagio Lever with Arc Rose:

• Lever Length: 4.72"
• Lever Projection: 1.90"
• Rose Height: 4.75"
• Rose Width: 2.5"
• Door Thickness: Adjustable 1-3/8" to 1-3/4"
• Backset: 2-3/8" or 2-3/4"
• Grandeur ARCBEL Dimensions (PDF)

When Selecting A Function:

• Single Dummy: A surfaced mounted, non-working, smooth lever. Non-locking and non-latching trim for one side of door. This inactive pull is usually used to match trim.
• Double Dummy: A surfaced mounted, non-working, smooth lever. Non-locking and non-latching trim for both sides of door. These inactive pulls are usually used to match trim.
• Passage (hall or closet): Latches but does not lock. The latch is activated by turning the either of the two levers.
• Privacy (bedroom or bathroom): Latches and can be locked. Can be locked from the inside with a push-button.

Select Function - Important Ordering Guide Single Dummy Double Dummy Add  $105.00 Passage (hall or closet) Add  $105.00 Privacy (bedroom or bathroom) Add  $105.00   Select Finish  VB: Vintage Brass PB: Polished Brass LB: Lifetime Polished Brass PN: Polished Nickel SN: Satin Nickel AP: Antique Pewter TB: Timeless Bronze   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Select Handing - Important Ordering Guide Right Hand Left Hand
