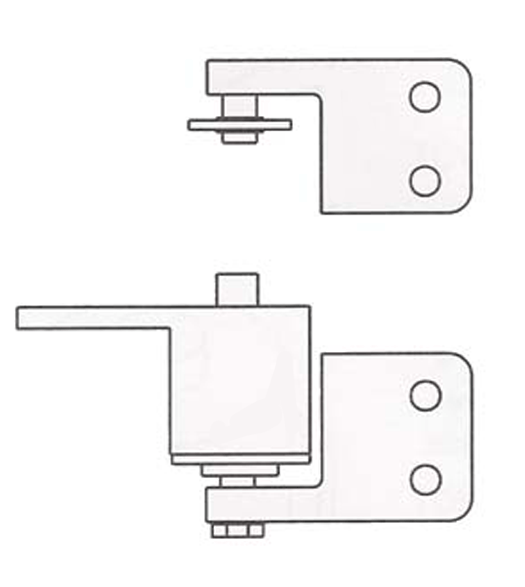

Bommer 7411 Gravity Door Pivot Hinge, Jamb Mounted with Box Clamp. Cast Brass construction pivot hinge for door up to 24 Inches wide, 1-7/8 Inches thick with a maximum door weight of 35 lbs.

Also available: Bommer 7412 Surface Mount Gravity Door Pivot Hinge.

Bommer Industries has been in business 1876, with over 125 years of quality products. Their products are American made with American metals.

Specifications of the Bommer Gravity Door Pivot Hinge:

• Maximum Door Width: 24"
• Maximum Door Thickness: 1-7/8"
• Maximum Door Weight: 35 lbs.
• Cast Brass Construction
• Double Acting
• Non-Handed
• Door Weight Closes Door. No Springs
• Box Clamp Jamb Bracket: Optional 1-1/8" or 1-1/4" Thick
• Flat Door Bracket: For doors not less than 3/4" thick
• Packaged with #10 - 1" Flat Head Wood Screws and Thru-Bolts with Nuts for Jamb
• Bommer 7411 Dimensions (PDF)

Sold individually as a set, with 1 pivot , 1 each jamb and door bracket, 1 top pivot assembly with jamb bracket, and mounting hardware. Enough to do one door.

Select Finish  605: Bright Brass, Clear Coated 613: Oil Rubbed Bronze Add  $64.77 625: Bright Chrome Add  $64.77 626: Satin Chrome Add  $27.88   Select Jamb Thickness  1.125: 1-1/8" Thick Jamb 1.250: 1-1/4" Thick Jamb
Note: This item is either Special Order or has been Discontinued. Please Contact Us.
