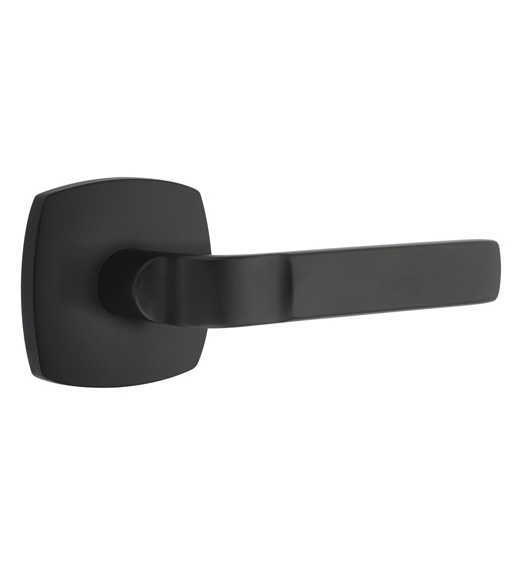

The Aston Lever with Urban Modern Rose is a stunning combination of soft lines and contemporary silhouettes. This transitional leverset is available in an array of beautiful finishes including matte black, satin nickel, and polished chrome. The Aston Lever with Urban Modern Rosette will fit 1-1/4 inch to 3 inch thick doors and has an optional 2-3/8 inch or 2-3/4 inch backset. Choose from dummy, passage, or privacy functions.

Features of the Modern Brass Aston Door Lever with Arched Square Rose:

• Fits standard door cut outs (2-1/8" pre-drilled doors).
• Lever is surface mounted (rosette screws to the door's face).
• Solid brass lever and trim rose.
• Sold as complete set.
• Easy to install.

Specifications of the Aston Leverset with Urban Modern Rose:

• Material: Brass
• Lever Width: 7/8"
• Lever Projection: 2-1/8"
• Clearance: 1-5/8"
• Rose Length: 2-1/2" square
• Door Thickness: 1-1/4 - 3"
• Backset: 2-3/8" or 2-3/4"

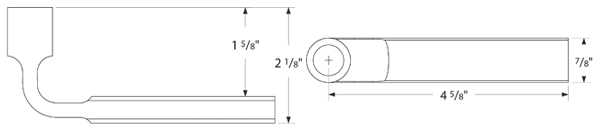

• Emtek Aston Lever Dimensions Diagram (PDF)

Available Functions:

• Double Dummy: No door latch. Door levers on both sides of the door. Package Includes: 2 levers, 2 roses, and mounting screws.
• Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 levers, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
• Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy push button and retract the door latch. Package Includes: 2 levers, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.

Levers are Handed. Handing Guide

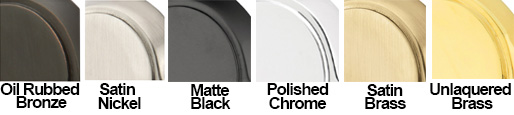

Select Function - Important Ordering Guide 5306AST: Double Dummy 5316AST: Passage (Hall or Closet) 5326AST: Privacy (Bedroom or Bathroom)   Select Finish  US10B: Oil Rubbed Bronze US15: Satin Nickel US19: Matte Black US26: Polished Chrome US14: Polished Nickel US4: Satin Brass US3NL: Unlacquered Brass Add  $16.00   Select Door Thickness  1-1/4" - 2" Door Thickness 2" - 2-1/2" Door Thickness 2-1/2" - 3" Door Thickness   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Select Handing - Important Ordering Guide RH: Right Handing LH: Left Handing
