| Item No: |
EMT-4212 |
| List Price: |
$671.00 |
| Your Price: |
$536.99 |

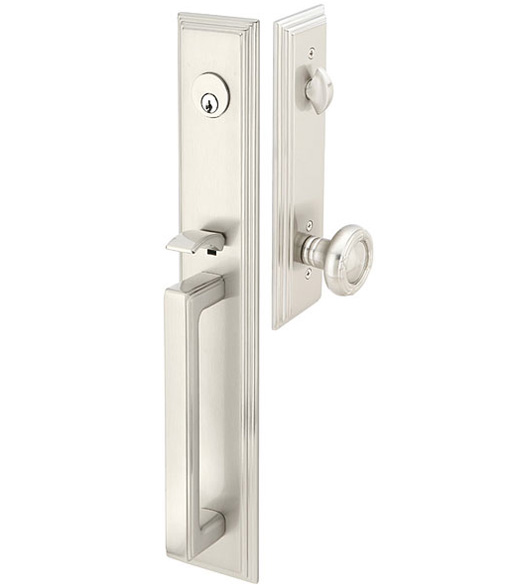

Emtek 4212, Melrose Handleset
With its retro look, the Melrose Entry Door Handleset is a great choice for mid-century modern homes. It will fit most pre-drilled doors with either 2-3/8 inch or 2-3/4 inch backsets and can accommodate doors from 1-3/4 inches to 3 inches thick. The Melrose Handleset is available in a wide array of finishes; and you can select your interior trim knob or lever for a unique look. The Melrose Tubular Handleset is available in either a dummy function or a single cylinder function.
Features for the Melrose Tubular Handleset:
- Keyway: Schlage C
- UL 180 minute fire rating
- Hardened steel bolt.
- Will fit standard 2-1/8" door preparations.
Specifications for the Emtek Melrose Entrance Handleset:
- Material: Brass
- Exterior Height: 18-1/2"
- Exterior Width: 3"
- Exterior Projection: 2-5/8"
- Exterior Grip Clearance: 1-3/8"
- Exterior Grip Thickness: 1"
- Interior Plate Height: 10"
- Interior Plate Width: 2-11/16"
- Door Thickness: 1-3/4" - 3" please specify
- Backset: either 2-3/8" or 2-3/4"
- Distance between Deadbolt and Lever Latch: 5-1/2" c.c.
- Distance between Latch Bore to Bottom Mounting Hole: 8-5/8" c.c.
- Emtek 4212 Specifications (PDF)
- Emtek Tubular Entryset Template Specifications (PDF)
When Selecting a Function:
- Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
- Single Cylinder: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob/lever operates the latch.
Sold Individually
|
