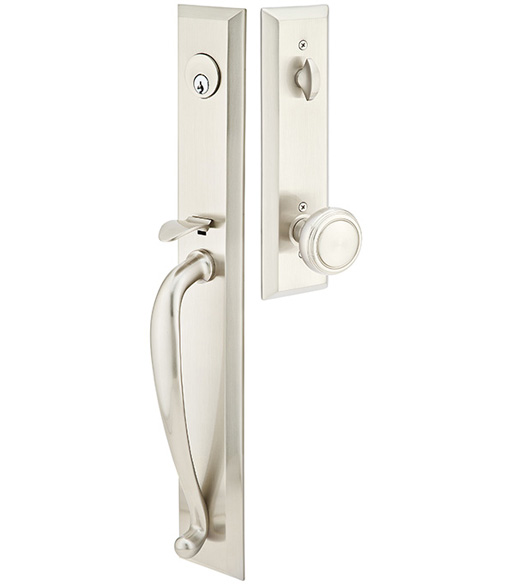

The Jefferson Tubular Handleset features a universal look that makes it a great choice for almost any home. The rectangular escutcheon paired with the S grip makes this Jefferson Entry Door Handleset a classic. It will fit either 2-3/8 inch or 2-3/4 inch backsets and can accommodate doors from 1-3/4 inches to 3 inches thick. Choose from single cylinder or dummy functions. The Jefferson Full Escutcheon Handleset is available with your choice of interior lever or knob in a wide array of finish colors.

Features for the Jefferson Tubular Handleset:

• Keyway: Schlage C
• UL 180 minute fire rating
• Hardened steel bolt.
• Will fit standard 2-1/8" door preparations.

Specifications for the Emtek Jefferson Entrance Handleset:

• Material: Brass
• Exterior Height: 18-3/4"
• Exterior Width: 2-3/4"
• Exterior Projection: 2-3/4"
• Exterior Grip Clearance: 2"
• Exterior Grip Thickness: 1-1/4"
• Interior Plate Height: 10"
• Interior Plate Width: 2-3/4"
• Door Thickness: 1-3/4" - 3" please specify
• Backset: either 2-3/8" or 2-3/4"
• Distance between Deadbolt and Lever Latch: 5-1/2" c.c.
• Distance between Latch Bore to Bottom Mounting Hole: 9-7/16" c.c.
• Emtek 4415 Specifications (PDF)
• Emtek Tubular Entryset Template Specifications (PDF)

When Selecting a Function:

• Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
• Single Cylinder: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob/lever operates the latch.

Sold Individually

Select Function - Important Ordering Guide 4405: Full Dummy Set 4415: Single Cylinder   Select Finish  US10B: Oil Rubbed Bronze US15: Satin Nickel US15A: Antique Nickel US19: Matte Black US26: Polished Chrome US14: Polished Nickel US7: French Antique US3: Polished Brass US4: Satin Brass US3NL: Unlacquered Brass Add  $40.00   Select Door Thickness  1-3/4" - 2-1/16" Door Thickness 2-1/4" - 2-7/16" Door Thickness 2-1/2" - 3" Door Thickness   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Select Interior Trim    C-RH: Cortina Lever (Right Handing)   C-LH: Cortina Lever (Left Handing)   M-RH: Milano Lever (Right Handing)   M-LH: Milano Lever (Left Handing)   T-RH: Turino Lever (Right Handing)   T-LH: Turino Lever (Left Handing)   E: Egg Knob   MN: Melon Knob   NW: Norwich Knob   P: Providence Knob   W: Waverly Knob   BL: Bristol Clear Crystal Knob   CK: Diamond Clear Crystal Knob   HT: Hampton Clear Crystal Knob   LW: Lowell Clear Crystal Knob   WS: Windsor Clear Crystal Knob   EB: Ebony Black Porcelain Knob   IW: Ice White Porcelain Knob   Keying - Important Ordering Guide Non-Keyed (Full Dummy Function) I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
Quantity
