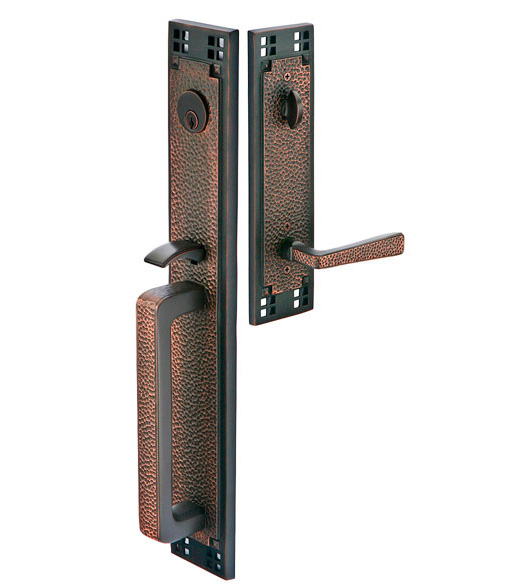

The Full Length Craftsman Handleset is an old classic that speaks of the craftmanship that used to go into every piece of door hardware. The Craftsman Full Length Handleset is available in 4 authentic finishes and comes with your choice of interior knob or lever. It will fit either 2-3/8 inch or 2-3/4 inch backsets and can accommodate doors from 1-3/4 inches to 3 inches thick. Choose from single cylinder or dummy functions.

Features for the Full Escutcheon Plate Arts and Crafts Front Door Handle:

• Keyway: Schlage C
• UL 180 minute fire rating
• Hardened steel bolt.
• Will fit standard 2-1/8" door preparations.

Specifications for the Emtek Arts and Crafts Entrance Handleset:

• Material: Brass
• Exterior Height: 19"
• Exterior Width: 3"
• Exterior Projection: 2-5/8"
• Exterior Grip Clearance: 1-1/2"
• Exterior Grip Thickness: 1-1/4"
• Interior Plate Height: 11"
• Interior Plate Width: 3"
• Door Thickness: 1-3/4" - 3" please specify
• Backset: either 2-3/8" or 2-3/4"
• Distance between Deadbolt and Lever Latch: 5-1/2" c.c.
• Distance between Latch Bore to Bottom Mounting Hole: 8-5/8" c.c.
• Emtek 4812 Specifications (PDF)
• Emtek Tubular Entryset Template Specifications (PDF)

When Selecting a Function:

• Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
• Single Cylinder: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob/lever operates the latch.

Sold Individually

Select Function - Important Ordering Guide 4802: Full Dummy Set 4812: Single Cylinder   Select Finish  US10B: Oil Rubbed Bronze US15: Satin Nickel US19: Matte Black US3NL: Unlacquered Brass Add  $40.00   Select Door Thickness  1-3/4" - 2-1/16" Door Thickness 2-1/4" - 2-7/16" Door Thickness 2-1/2" - 3" Door Thickness   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Select Interior Trim    AC-RH: Arts and Crafts Lever (Right Handing)   AC-LH: Arts and Crafts Lever (Left Handing)   HM-RH: Hammered Lever (Right Handing)   HM-LH: Hammered Lever (Left Handing)   HE: Hammered Egg Knob   LW: Lowell Clear Crystal Knob   BL: Bristol Clear Crystal Knob   CK: Diamond Clear Crystal Knob   GT: Georgetown Clear Crystal Knob   HT: Hampton Clear Crystal Knob   OT: Old Town Clear Crystal Knob   WS: Windsor Clear Crystal Knob   EB: Ebony Black Porcelain Knob   IW: Ice White Porcelain Knob   Keying - Important Ordering Guide Non-Keyed (Full Dummy Function) I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
Quantity
