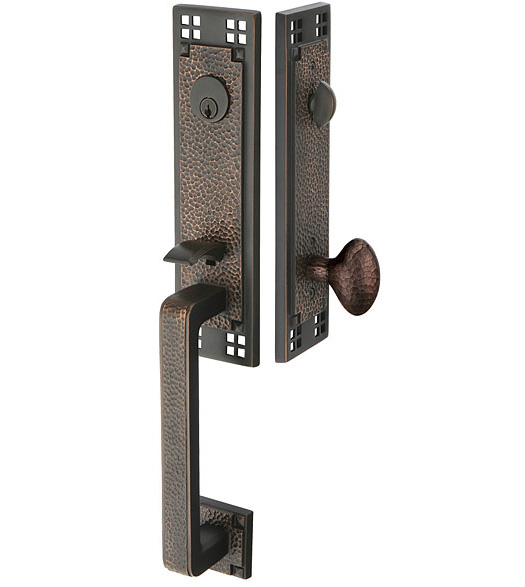

The Arts and Crafts Handleset's classic styling makes it a great choice for historic homes. With the textured plate and square cut-outs, the Arts & Crafts Handleset has a rustic look that will make an impressive statement on any door. The 3/4 Escutcheon Plate Arts and Crafts Front Door Handle is available in dummy and single cylinder functions. It will fit either 2-3/8 inch or 2-3/4 inch backsets and can accommodate doors from 1-3/4 inches to 3 inches thick.

Features for the 3/4 Escutcheon Plate Arts and Crafts Front Door Handle:

• Keyway: Schlage C
• UL 180 minute fire rating
• Hardened steel bolt.
• Will fit standard 2-1/8" door preparations.

Specifications for the Emtek Arts and Crafts Entrance Handleset:

• Material: Brass
• Exterior Overall Height: 18"
• Exterior Top Plate Height: 11"
• Exterior Top Plate Width: 3"
• Exterior Bottom Plate Height: 2-1/4" square
• Exterior Projection: 2-5/8"
• Exterior Grip Clearance: 1-1/2"
• Exterior Grip Thickness: 1-1/4"
• Interior Plate Height: 11"
• Interior Plate Width: 3"
• Door Thickness: 1-3/4" - 3" please specify
• Backset: either 2-3/8" or 2-3/4"
• Distance between Deadbolt and Lever Latch: 5-1/2" c.c.
• Distance between Latch Bore to Bottom Mounting Hole: 8-5/8" c.c.
• Emtek 4811 Specifications (PDF)
• Emtek Tubular Entryset Template Specifications (PDF)

When Selecting a Function:

• Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
• Single Cylinder: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob/lever operates the latch.

Sold Individually

Select Function - Important Ordering Guide 4801: Full Dummy Set 4811: Single Cylinder   Select Finish  US10B: Oil Rubbed Bronze US15: Satin Nickel US19: Matte Black US3NL: Unlacquered Brass Add  $40.00   Select Door Thickness  1-3/4" - 2-1/16" Door Thickness 2-1/4" - 2-7/16" Door Thickness 2-1/2" - 3" Door Thickness   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Select Interior Trim    AC-RH: Arts and Crafts Lever (Right Handing)   AC-LH: Arts and Crafts Lever (Left Handing)   HM-RH: Hammered Lever (Right Handing)   HM-LH: Hammered Lever (Left Handing)   HE: Hammered Egg Knob   LW: Lowell Clear Crystal Knob   BL: Bristol Clear Crystal Knob   CK: Diamond Clear Crystal Knob   GT: Georgetown Clear Crystal Knob   HT: Hampton Clear Crystal Knob   OT: Old Town Clear Crystal Knob   WS: Windsor Clear Crystal Knob   EB: Ebony Black Porcelain Knob   IW: Ice White Porcelain Knob   Keying - Important Ordering Guide Non-Keyed (Full Dummy Function) I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
