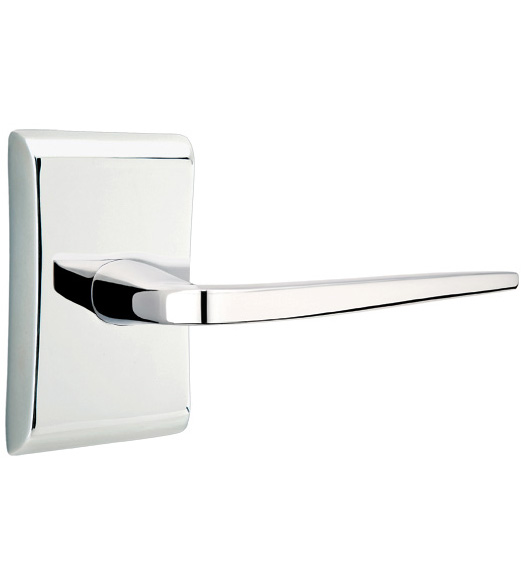

Emtek 5051ATN, Athena Lever with Neos Rectangular Rosette
Emtek's Athena Lever with Neos Rose is a simple lever with a modern design. It is paired with the rectangular Neos Rose that transforms this leverset into something truly contemporary. The Athena Lever with Neos Rectangular Rosette is available in dummy, passage, and privacy functions. This modern brass door lever will fit doors with backsets of either 2-3/8 inches or 2-3/4 inches and will fit doors 1-1/4 inches to 3 inches thick.
Features of the Contemporary Athena Door Lever with Neos Rectangle Rose:
- Fits standard door cut outs (2-1/8" pre-drilled doors).
- Lever is surface mounted (rosette screws to the door's face).
- Solid brass lever and trim rose.
- Sold as complete set.
- Easy to install.
Specifications of the Modern Athena Leverset with Rectangular Rose:
- Material: Brass
- Lever Length: 5"
- Lever Projection: 2-3/4"
- Clearance: 1-1/2"
- Rose Height: 4"
- Rose Width: 2-5/8"
- Door Thickness: 1-1/4 - 3"
- Backset: 2-3/8" or 2-3/4"
Available Functions:
- Double Dummy: No door latch. Door levers on both sides of the door. Package Includes: 2 levers, 2 roses, and mounting screws.
- Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 levers, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
- Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy push button and retract the door latch. Package Includes: 2 levers, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
Levers are Handed. Handing Guide
|
