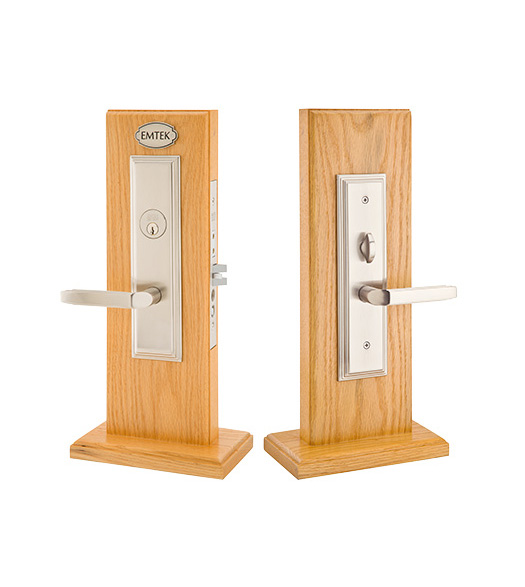

The Retro Manhattan Mortise Entrance Lockset has all the classic elegance of some of New York's most historic architecture. The stepped sides is the perfect marriage between the old and new, making this entryset a great choice for traditional spaces that want a more contemporary look. The Manhattan Mortise Entry Set will fit either 2-1/2 inch or 2-3/4 inch backsets and can accommodate doors from 1-3/4 inches to 2-3/4 inches thick. Choose from a whole array of transitional finishes.

Features of the Emtek Manhattan Entryset and the ANSI F20 Heavy Duty Lock Body: Keyway: Schlage C UL 180 minute fire rating Deadlocking latch bolt with saw-proof inserts. Anti-pick security latch. When the deadbolt is engaged, the outside thumb press is automatically locked. The latch bolt is retracted by the knob or lever on either side, except when the outside thumb press is locked by stop button, then it can only be opened from the exterior by use of the key. Making it ideal for doors you want to automatically lock. This feature can be easily toggled on and off by pressing the stop and release button on the mortise box face. Operating the interior trim retracts both the deadbolt and the latch bolt for emergency egress.

Specifications of the Emtek Middleton Keyed Entry Plate:

• Material: Solid Brass
• Height: 10"
• Width: 2-45/64"
• Deadbolt to Trim Center to Center: 3-11/32"
• Door Thickness: 1-3/4" - 2-3/4" please specify
• Backset: either 2-1/2" or 2-3/4"
• Emtek 3506 Specifications (PDF)
• Emtek ANSI F20 Mortise Box Specifications (PDF)
• Emtek ANSI F20 Mortise Installation Instructions (PDF)

When Selecting a Function:

• Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
• Single Cylinder: From the exterior, a knob/lever operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob/lever operates the latch.

Sold Individually

Select Function - Important Ordering Guide 3106: Full Dummy Set 3506: Single Cylinder Add  $280.00   Select Finish  US10B: Oil Rubbed Bronze US15: Satin Nickel US15A: Antique Nickel US19: Matte Black US26: Polished Chrome US7: French Antique US3: Polished Brass US3NL: Unlacquered Brass Add  $40.00   Select Door Thickness  1-3/4" Door Thickness 1-7/8" - 2-1/4" Door Thickness 2-3/8" - 2-3/4" Door Thickness   Select Backset - Important Ordering Guide 2-1/2" Backset 2-3/4" Backset   Select Trim    M: Milano Lever   C: Cortina Lever   EN: Elan Lever   R: Rustic Lever   SF: Santa Fe Lever   T: Turino Lever   WM: Wembley Lever   CV: Coventry Lever   ME: Merrimack Lever   P: Providence Knob   E: Egg Knob   LN: Lancaster Knob   V: Victorian Knob   W: Waverly Knob   HT: Hampton Clear Crystal Knob   GT: Georgetown Clear Crystal Knob   OT: Old Town Clear Crystal Knob   WS: Windsor Clear Crystal Knob   EB: Ebony Black Porcelain Knob   IW: Ice White Porcelain Knob   Select Door Handing & Door Swing - Important Ordering Guide Left Hand Door, Out-swing Left Hand Door, In-swing Right Hand Door, Out-swing Right Hand Door, In-swing   Keying - Important Ordering Guide Non-Keyed (Full Dummy Function) I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
