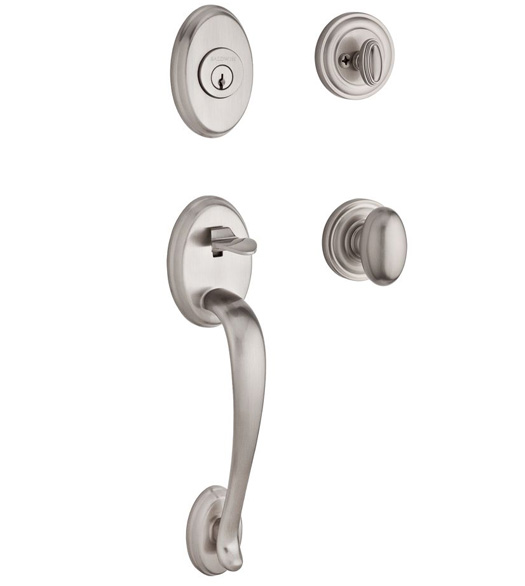

The Columbus Handleset features oval mounts on the outside and traditional round mounts on the inside. Choose from 6 interior trim options and lots of beautiful finishes. This entry set made by Baldwin is designed to fit standard 2-1/8 inch predrilled doors with 2-3/8 inch or 2-3/4 inch backsets. The Columbus Handleset fits door thicknesses of 1-3/4 inches all the way up to 2-1/2 inches. A grade 2 entranceset, it has a lifetime manufacturer's mechanical warranty. Select from single, double, or dummy cylinder functions.

Features of the Columbus Traditional Handleset with Round Rose:

• Fits 2-1/8" cross bore for both deadbolt and grip with a 1" edge bore for both grip latch and deadbolt latch.
• Baldwin C-Keyway.
• Latch: square corner adjustable
• Strike: square corner
• Brass deadbolt features 1" throw. Grip offers 1/2" passage/privacy function bolt.
• Deadbolt tested to exceed ANSI-BHMA Grade 2 Security.
• Warranty: 25 year finish warranty and a limited lifetime mechanical warranty.

Specifications of the Baldwin Columbus Traditional Oval Entryset:

• Exterior Deadbolt Width: 2-11/16"
• Exterior Deadbolt Length: 3-15/16"
• Interior Deadbolt Diameter: 2-5/8"
• Single Cylinder Interior Deadbolt Projection: 1-7/16"
• Double Cylinder Interior Deadbolt Projection: 3/4"
• Exterior Handleset Length (without deadbolt): 12"
• Exterior Handleset Length center to center (without deadbolt): 8-13/32"
• Exterior Grip Projection: 2-8/9"
• Interior Trim Rose Diameter: 2-9/16"
• Door Thickness: 1-3/4" - 2" standard with optional thick door kit for 2" - 2-1/2".
• Backset: Adjustable for 2-3/8" or 2-3/4"

When Selecting a Function:

• Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
• Single Cylinder: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob/lever operates the latch.
• Double Cylinder: From the exterior, a thumb piece operates handleset latch; while from the interior, it is operated by a knob. The deadbolt is operated by a key from both the inside and the outside.

Select Function - Important Ordering Guide SC: Single Cylinder DC: Double Cylinder FD: Full Dummy   Select Finish  150: Satin Nickel 003: PVD Polished Brass 055: PVD Polished Nickel 152: Matte Antique Nickel 112: Venetian Bronze 260: Polished Chrome 044: PVD Satin Brass 190: Satin Black   Select Door Thickness  STD: 1-3/4" - 2" Door Thickness THK: 2" - 2-1/2" Door Thickness Add  $16.80   Select Interior Trim    ELL: Ellipse Knob   ROU: Round Knob   TRA: Traditional Knob   CUR-RH: Curve Lever (right handing)   CUR-LH: Curve Lever (left handing)   FED-RH: Federal Lever (right handing)   FED-LH: Federal Lever (left handing)   DEC-RH: Decorative Lever (right handing)   DEC-LH: Decorative Lever (left handing)   Select Keying Options - Important Ordering Guide I only ordered one Non-Keyed (dummy) Keyed Differently Keyed Alike Add  $5.50
