Double Handleset Spade Tip Mortise Lockset, Acorn ATVBD / ATVBI


Item No:  ACO-ATVBD
List Price:  $241.00
Your Price:  $216.90

Acorn ATVBD / ATVBI, Double Handleset Spade Tip Mortise Entryset

The rustic style of this handleset makes it perfect for traditional homes of all types. It has a black iron finish. This lockset has a identical grip on both the interior and the exterior. Available in single and dummy cylinder functions, it is good for 1-3/4 inch to 3 inch thick doors with a 2-1/2 inch or 2-3/4 inch backset.

Specifications of the Double Handleset Spade Tip Mortise Lockset:

  • Finish: Black Iron
  • Exterior and Interior Handleset Length: 12-3/16”
  • Exterior and Interior Handleset Width: 3-3/8”
  • Exterior and Interior Handleset Projection: 2-3/8"
  • Door Thickness: 1-3/4" Standard, Optional up to 3" thick doors
  • Backset: 2-1/2" or 2-3/4"
  • Stile Width: Recommend 4-1/2” with a 4-1/4” minimum.
  • Keyway: Schlage C-Keyway
  • Lifetime Finish Warranty

Acorn Mortise Lock Specifications

When Selecting a Function:

  • Dummy Handleset: Usually used as matching trim for the non-working side of double doors it does not latch and does not lock. Blank cylinder and non-functional thumbpiece on the exterior. Non-functional turnpiece on the interior.
  • Single Cylinder Handleset: A key operates the deadbolt from the exterior while a thumbturn operates it from the interior. The latch is operated by a thumbpiece from the exterior and interior.

Click Here to Determine Handing


Select Function - Important Ordering Guide

Select Backset - Important Ordering Guide

Select Door Thickness

Select Door Handing & Door Swing - Important Ordering Guide

Keying - Important Ordering Guide


Quantity

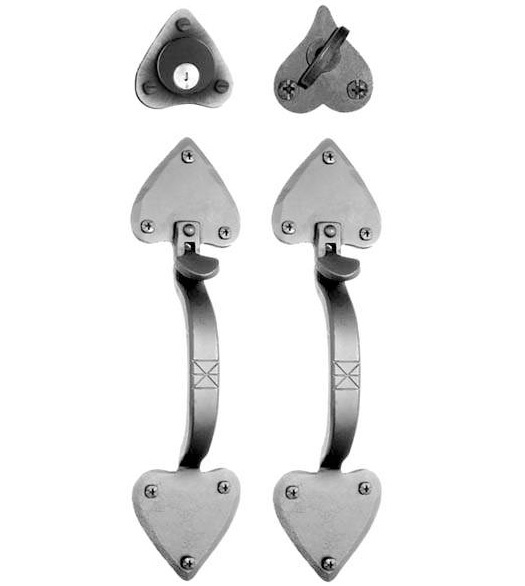

  Double Handleset Spade Tip Mortise Entryset

  Double Handleset Spade Tip Mortise Lockset, Acorn ATVBD / ATVBI
