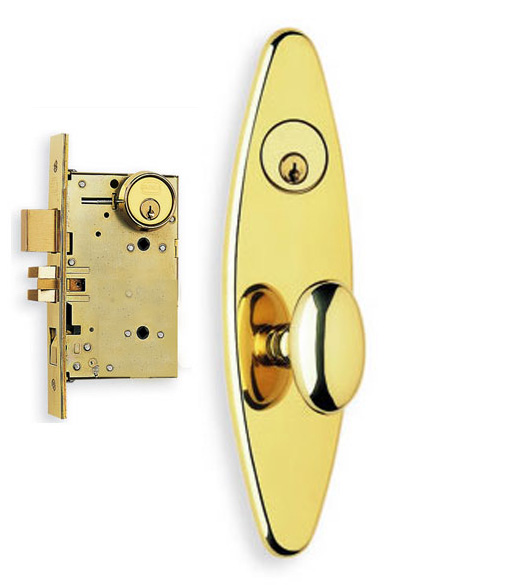

Oval Plate Egg Knob Mortise Lockset is built to withstand heavy use. It is commercial grade, UL listed, and fire rated. The mortise locks combines precision engineering for security and durability with attractive design.

Also available for standard pre-drilled doors: Omnia D26860

Each set contains door knobs, backplates, mortise latchset, spindle, and all necessary screws and templates. Key functions are supplied with lock cylinder/s and turnpiece as applicable.

Specifications for the Omnia 26860 Egg Knob Mortise Set

• Backplate Height 10-5/16"
• Doors Thickness: Optional, 1-3/4" - 2-1/4" Thick Doors (Contact us if doors are thicker)
• Backset: 2-1/2"or 2-3/4"
• Solid Brass Egg Knobs and Trim
• Tough, non rusting materials used throughout.
• Mortise case is heavy wrought steel with zinc dichromate finish for corrosion resistance.
• Front: Adjustable armored steel front, with 8" x 1-1/4" solid brass faceplate for all lock bodies, finished to match trim.
• Deadbolt: Full 1" Throw, Solid Brass with Saw-proof Insert.
• Lock Cylinder: Standard "C" keyway supplied with two nickel silver keys.
• Omnia Mortise Lockset Dimensions & Specs (PDF)

When Selecting a Function:

• Dummy Pair: Stationary both sides of door. Fixed knobs, non-functioning. Used as door pulls or to match trim.
• Passage (Hall / Closet): Latchbolt operates by knob from either side.
• Privacy (Bathroom / Bedroom): Latchbolt operates by knob from either side. Deadbolt by turnpiece inside and emergency key outside. Turning inside knob will retract both deadbolt and latchbolt at the same time.
• Single Cylinder Entry: Latchbolt operates by knob from either side except when outside trim is locked by stop-button; then opens by key outside, by knob inside. Deadbolt activated by key outside and by turnpiece inside.
• Double Cylinder Entry: Latchbolt operates by knob from either side except when outside trim is locked by stop-button; then opens by key outside, by knob inside. Deadbolt activated only by key from either side.
• Panic Proof Entry: Latchbolt operates by knob from either side except when outside trim is locked by stop-button. Deadbolt activated by key outside and by turnpiece inside. Turning inside knob will retract both deadbolt and latchbolt at the same time.
• Storeroom: Latchbolt operates by knob inside and by key outside. The outside knob is rigid. Auxiliary latchbolt deadlocks latchbolt.

Select Function - Important Ordering Guide Dummy Pair Passage (Hall / Closet) Add  $211.20 Privacy (Bathroom / Bedroom) Add  $263.20 Single Cylinder Entry Add  $289.60 Storeroom Add  $289.60 Panic Proof Entry Add  $296.80 Double Cylinder Entry Add  $302.40   Select Finish  US3 - Polished Brass US26 - Polished Chrome Add  $17.60 SB - Shaded Bronze Add  $17.60 US15 - Satin Nickel Add  $34.40 VB - Vintage Brass Add  $64.80 VC - Vintage Copper Add  $64.80 VI - Vintage Iron Add  $64.80   Select Door Thickness  1-3/4" Door Thickness 2" Door Thickness 2-1/4" Door Thickness   Select Backset - Important Ordering Guide 2-1/2" Backset 2-3/4" Backset   Select Door Handing & Door Swing - Important Ordering Guide LHR: Left Hand Door, Out-swing LH: Left Hand Door, In-swing RHR: Right Hand Door, Out-swing RH: Right Hand Door, In-swing   Keying - Important Ordering Guide I only ordered one Keyed Different Keyed Alike Add  $5.50
Note: This item is either Special Order or has been Discontinued. Please Contact Us.
Quantity
