| Item No: |
EMT-7051SC |
| List Price: |
$173.25 |
| Your Price: |
$138.99 |

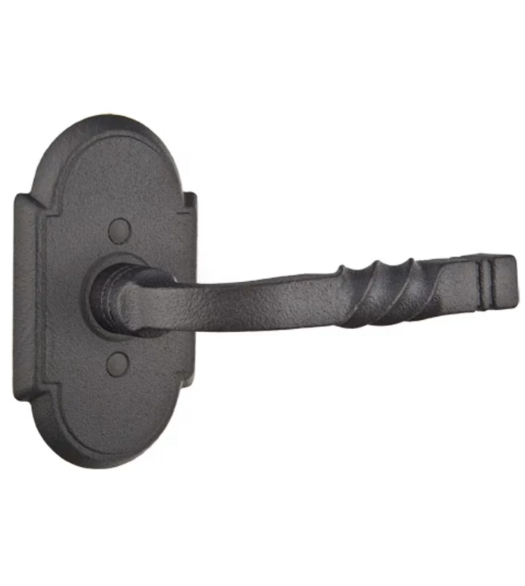

Emtek 7051SC, Rustic San Carlos Lever with Arch Rose
The unique design of the Wrought Steel San Carlos Lever with Arched Rosette, Emtek 7051L is dripping with old world charm. Versatile, it will look great in a wide array of traditional style homes. Available in 2 finishes, It will fit 1-3/8 inch to 3 inch thick doors with either 2-3/8 inch or 2-3/4 inch backsets. The Rustic San Carlos Lever with Arch Rose is available in dummy, passage, and privacy functions.
Features of the San Carlos Leverset:
- Fits standard door cut outs (2-1/8" pre-drilled doors).
- Lever is surface mounted (rosette screws to the door's face).
- Sold as complete set.
- Easy to install.
Specifications of the San Carlos Wrought Steel Lever with Arched #1 Rose:
- Material: Wrought Steel
- Lever Length: 4-3/4""
- Lever Projection: 3"
- Clearance: 2-3/8"
- Rose Height: 4-3/8"
- Rose Width: 2-9/16"
- Door Thickness: 1-3/8 - 3"
- Backset: 2-3/8"or 2-3/4"
Available Functions:
- Double Dummy: No door latch. Door levers on both sides of the door. Package Includes: 2 levers, 2 roses, and mounting screws.
- Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 levers, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
- Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy push button and retract the door latch. Package Includes: 2 levers, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
Levers are Handed. Handing Guide
|
