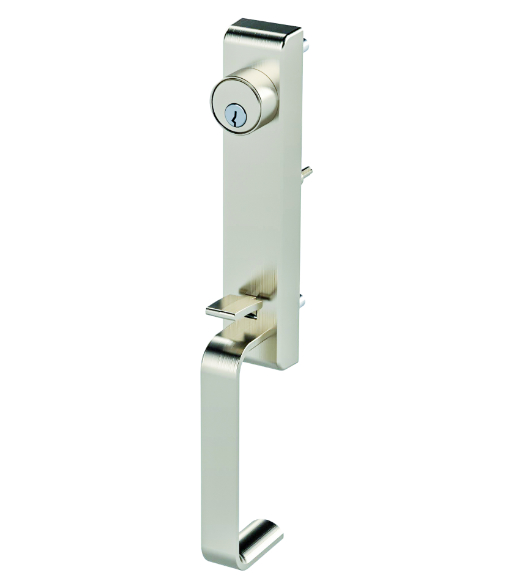

This is a Storeroom Function Handleset (turning key and pressing thumb piece opens door) for all Wide, Medium, and Narrow Stile Doors (aluminum framed, hollow metal, or wood). For use on door's exterior with Panic Device Hardware. Will not cover standard 2-1/8" bore hole prep.

For use with PDQ 6300 Series Rim Exit Device, 6300 Series Surface Vertical Rod Exit Device, and 6300 Series Narrow Stile Surface Vertical Rod Exit Device.

Packaged with mortise cylinder, mounting hardware, instructions, and 2 keys.

Features of PDQ 6-T-06 Storeroom Function Handleset

• Storeroom Function (ANSI F06) - Outside entrance by lever when latch bolt is retracted by Key. (Thumb press only opens door when the key is turned). Key removable only when locked.
• Overall Height: 14-1/4"
• Plate Height: 9"
• Plate Width: 1-13/16"
• Total Projection: 2-5/8"
• 1-1/8" Mortise Cylinder with Schlage C Keyway included
• Supplied with 2 keys
• PDQ 6-T Installation Template (PDF)
• Installation Instructions (PDF)

Available in your choice of Satin Stainless Steel, Dark Bronze, or Matte Black.

Select Finish  630: Satin Stainless Steel 613E: Dark Bronze Add  $17.22 622: Matte Black Add  $17.22   Keying - Important Ordering Guide Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
