| Item No: |
CPX-C8073-14A |
| List Price: |
$18.99 |
| Your Price: |
$15.99 |

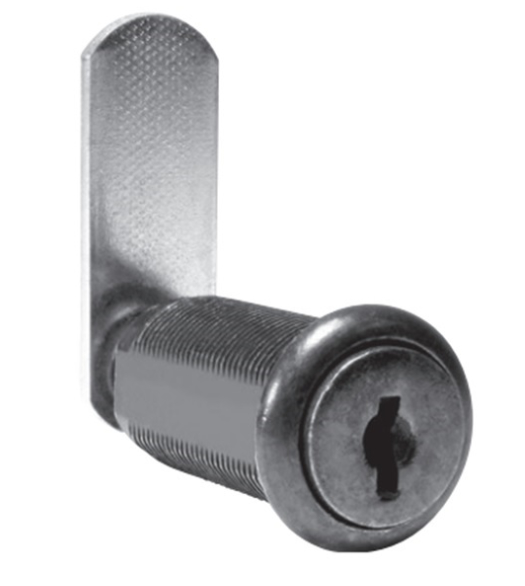

CompX C8076-14A, Keyed Cam Cabinet or Drawer Lock
The Keyed Cam Cabinet Lock is designed to lock cabinet doors or drawers with lipped/overlay construction with a maximum thickness of 7/8". For overlay application the combined thickness of front and frame cannot exceed the length of the 1-3/16" cylinder. The lock can be ordered keyed alike or keyed differently and is packaged with 2 keys, trim washer, spur washer, mounting nut, two cams, and two stop washers.
Specifications of the Keyed Cam Cabinet and Drawer Lock:
- Cam Type: Straight
- Cam Length: 1-1/2"
- Cam Offset: 11/32"
- Cam Rotation: 90° or 180° CW/CCW
- Hand: Reversible
- Mounting Hole Diameter: 3/4"
- Maximum Material Thickness: 7/8"
- Cylinder Type: 5 Disc Tumbler
- Non-handed
- Polished Nickel Finish
|
