| Item No: |
EMT-5050HLO |
| List Price: |
$186.00 |
| Your Price: |
$148.99 |

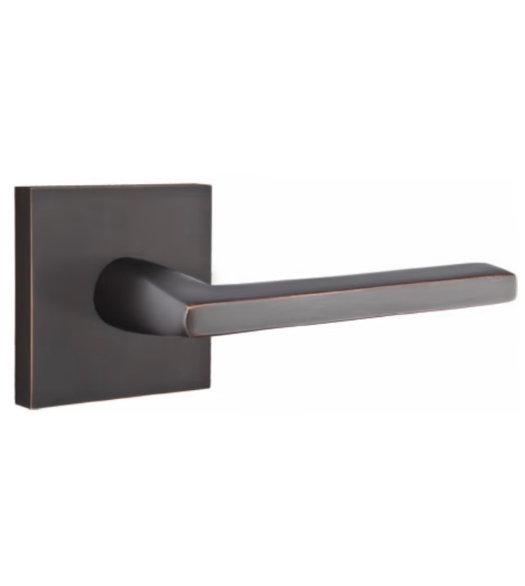

Emtek 5050HLO, Helios Leverset with Modern Square Rose
The Helios Lever with Square Rosette is wonderfully modern, with a sleek profile that is perfect for industrialized decor and modern lofts. The Helios Door Lever with Modern Square Rose is available in dummy, passage, and privacy functions. Choose from an array of modern finishes including satin brass and polished chrome. The Modern Helios Leverset with Square Rose will fit doors with backsets of either 2-3/8 inches or 2-3/4 inches and will fit doors 1-1/4 inches to 3 inches thick.
Features of the Modern Helios Door Lever with Square Rose:
- Fits standard door cut outs (2-1/8" pre-drilled doors).
- Lever is surface mounted (rosette screws to the door's face).
- Solid brass lever and trim rose.
- Sold as complete set.
- Easy to install.
Specifications of the Helios Leverset with Square Rose:
- Material: Brass
- Lever Length: 5"
- Lever Projection: 2-1/8"
- Clearance: 1-1/2"
- Rose Length: 2-1/2" Square
- Door Thickness: 1-1/4 - 3"
- Backset: 2-3/8" or 2-3/4"
Available Functions:
- Double Dummy: No door latch. Door levers on both sides of the door. Package Includes: 2 levers, 2 roses, and mounting screws.
- Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 levers, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
- Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy push button and retract the door latch. Package Includes: 2 levers, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
Levers are Handed. Handing Guide
|
