| Item No: |
EMT-5051HLO |
| List Price: |
$173.25 |
| Your Price: |
$138.99 |

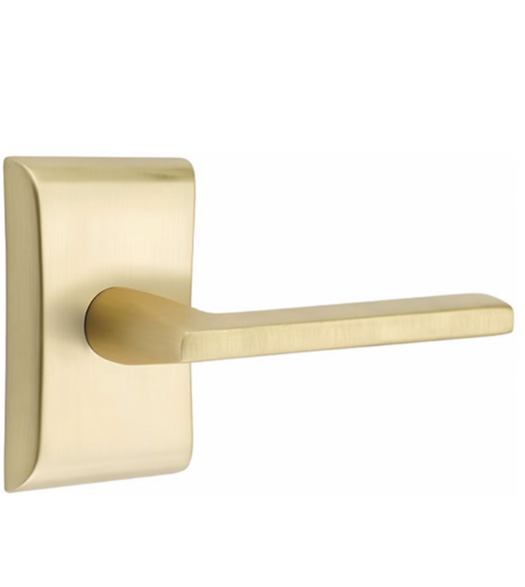

Emtek 5051HLO Helios Lever with Rectangular Neos Rosette
The Helios Lever with Neos Rose has a fashionable, modern design. It is not only chic, it is also comfortable to the hand, which can sometimes be neglected in similar leversets. The Helios Lever with Modern Rectangular Neos Rosette is available in a wide array of modern finishes. Choose from dummy, passage, and privacy functions.
Features of the Contemporary Helios Door Lever with Modern Rectangle Rose:
- Fits standard door cut outs (2-1/8" pre-drilled doors).
- Lever is surface mounted (rosette screws to the door's face).
- Solid brass lever and trim rose.
- Sold as complete set.
- Easy to install.
Specifications of the Helios Leverset with Neos Rose:
- Material: Brass
- Lever Length: 5"
- Lever Projection: 2-1/8"
- Clearance: 1-1/4"
- Rose Height: 4"
- Rose Width: 2-5/8"
- Door Thickness: 1-1/4 - 3"
- Backset: 2-3/8" or 2-3/4"
Available Functions:
- Double Dummy: No door latch. Door levers on both sides of the door. Package Includes: 2 levers, 2 roses, and mounting screws.
- Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 levers, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
- Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy push button and retract the door latch. Package Includes: 2 levers, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
Levers are Handed. Handing Guide
|
