| Item No: |
EMT-5050ACEKN |
| List Price: |
$295.00 |
| Your Price: |
$235.99 |

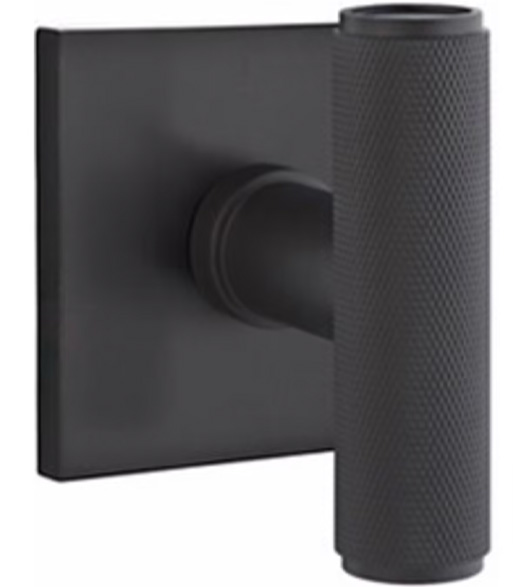

Emtek 5050ACEKN, Knurled T-Knob Knob with Square Rose
The Knurled Ace Knob with Square Rose will fit most pre-drilled doors. It will fit doors 2-3/8 inch or 2-3/4 inch backsets. The Ace Knurled Knob with Square Rose is suitable for use on doors that are 1-1/4 inches to 3 inches thick. The Knurled T-Knob Knob with Square Rose is available in dummy functions with out a latch but it also comes in passage and privacy functions. Choose from a huge selection of finish color options!
Features of the Emtek Square Rose with Ace Knurled Knob:
- Fits standard door cut outs (2-1/8" pre-drilled doors).
- Knob is surface mounted (rosette screws to the door's face).
- Solid brass knob and trim rose.
- Sold as complete set.
- Easy to install.
Specifications of the Ace Knurled Knobset:
- Material: Brass
- Knob Length: 3-1/8"
- Knob Grip Diamater: 15/16"
- Knob Projection: 2-3/8"
- Rose Length: 2-1/2" square
- Door Thickness: 1-1/4" - 3"
- Backset: 2-3/8" or 2-3/4"
- Emtek Ace Knurled Dimensions Diagram (PDF)
Available Functions:
- Double Dummy: No door latch. Door knobs on both sides of the door. Package Includes: 2 knobs, 2 roses, and mounting screws.
- Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 knobs, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
- Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside knob will release privacy push button and retract the door latch. Package Includes: 2 knobs, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
This mix-match style knob is totally customizable. If you need a different finish combination or a different rose style, Contact Us
|
