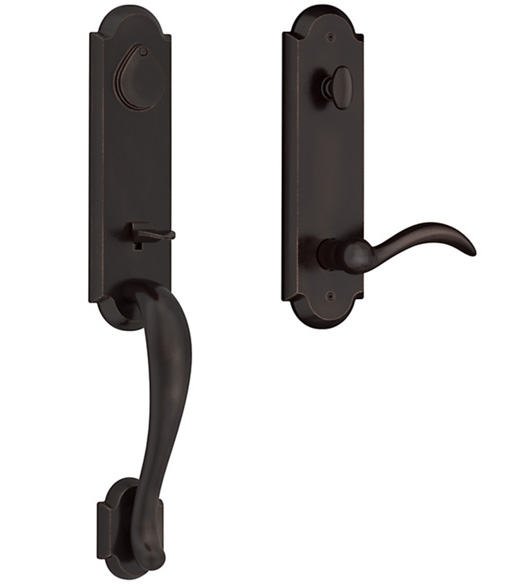

The classic styling of the Kodiak Entrance Set makes it a great choice for traditional homes. This entrance set has a rustic feel that is growing in popularity in the world of home decorating. The covered deadbolt grants it a little something extra--the perfect finishing touch. The Kodiak Handleset is available in either dark bronze or white bronze finishes. Choose from emergency egress single cylinder or dummy functions. As part of Baldwin's Reserve Collection, it has a 25 year finish warranty and a lifetime manufacturer's warranty. It will fit most predrilled 2-1/8 inch bore hole doors. The adjustable latch will fit 2-3/8 inch backsets or 2-3/4 inch backsets. It will fit 1-3/4 inch door thicknesses all the way up to 2-1/2 inches.

Features of the Baldwin Reserve Kodiak Handleset:

• Fits 2-1/8" cross bore for both deadbolt and grip with a 1" edge bore for both grip latch and deadbolt latch.
• Baldwin C-Keyway.
• Latch: square corner adjustable
• Strike: square corner
• Brass deadbolt features 1" throw. Grip offers 1/2" passage/privacy function bolt.
• Warranty: 25 year finish warranty and a limited lifetime mechanical warranty.

Specifications of the Kodiak Covered Deadbolt Handleset:

• Exterior Overall Length: 18-1/2"
• Exterior Top Plate Width: 2-15/16"
• Exterior Top Plate Length: 10-9/16"
• Exterior Grip Projection: 3-1/16"
• Interior Trim Escutcheon Width: 2-15/16"
• Interior Trim Escutcheon Length: 10-9/16"
• Distance between Latch Bore to Bottom Mounting Hole: 8-13/32" c.c.
• Door Thickness: 1-3/4" - 2" standard with optional thick door kit for 2" - 2-1/2".
• Backset: Adjustable for 2-3/8" or 2-3/4"

When Selecting a Function:

• Single Cylinder Emergency Egress: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, the deadbolt is thrown by a thumbturn while the interior knob/lever opens the door without having to unlock the deadbolt.
• Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.

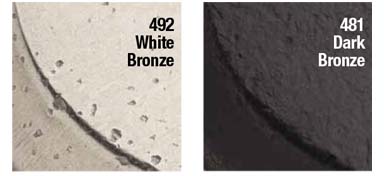

Select Function - Important Ordering Guide EE: Single Cylinder Emergency Egress FD: Full Dummy   Select Finish  481: Dark Bronze 492: White Bronze   Select Door Thickness  STD: 1-3/4" - 2" Door Thickness THK: 2" - 2-1/2" Door Thickness Add  $16.80   Select Interior Trim    ARC-RH: Arch Lever (right handing)   ARC-LH: Arch Lever (left handing)   TAP-RH: Taper Lever (right handing)   TAP-LH: Taper Lever (left handing)   RUS: Rustic Knob   Select Keying Options - Important Ordering Guide I only ordered one Non-Keyed (dummy) Keyed Differently Keyed Alike Add  $5.50
