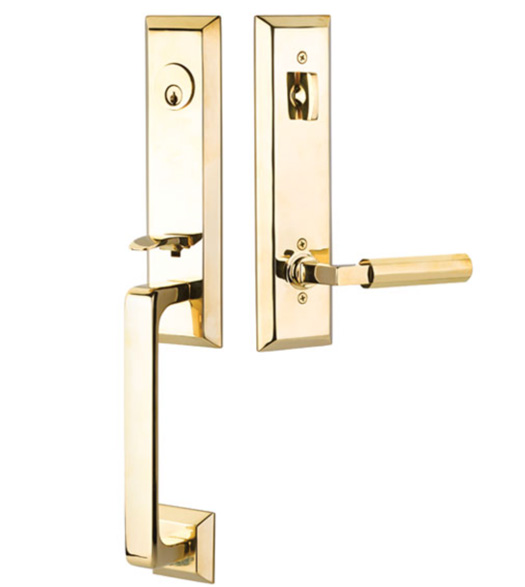

The Transitional Heritage Mortise Handleset is a transitional front door lock. It is available in popular finish color options with your choice of interior trim. The Emtek Transitional Heritage Mortise Entry Set features an ANSI F20 Heavy Duty Lock Body, which can be toggled to lock automatically upon closing the door. The Emtek Artemis Mortise Front Door Handle will fit either 2-1/2 inch or 2-3/4 inch backsets and can accommodate doors from 1-3/4 inches to 2-3/4 inches thick.

Features of the Emtek Transitional Heritage Handleset and the ANSI F20 Heavy Duty Lock Body: Keyway: Schlage C UL 180 minute fire rating Deadlocking latch bolt with saw-proof inserts. Anti-pick security latch. When the deadbolt is engaged, the outside thumb press is automatically locked. The latch bolt is retracted by the thumb press / knob / lever on either side, except when the outside thumb press is locked by stop button, then it can only be opened from the exterior by use of the key. Making it ideal for doors you want to automatically lock. This feature can be easily toggled on and off by pressing the stop and release button on the mortise box face. Operating the interior trim retracts both the deadbolt and the latch bolt for emergency egress.

Specifications of the Transitional Heritage Mortise Entry Set

• Material: Solid Brass
• Exterior Top Plate Height: 10"
• Exterior Top Plate Width: 2-11/16""
• Exterior Bottom Plate Height: 2-1/4"
• Exterior Bottom Plate Width: 2-1/4"
• Exterior Grip Thickness: 1"
• Exterior and Interior Plate Thickness: 1/2"
• Interior Height: 10"
• Interior Width: 2-11/16"
• Door Thickness: 1-3/4" - 2-3/4" please specify
• Backset: either 2-1/2" or 2-3/4"
• Emtek 3339 Specifications (PDF)
• Emtek ANSI F20 Mortise Box Specifications (PDF)
• Emtek ANSI F20 Mortise Installation Instructions (PDF)

When Selecting a Function:

• Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
• Single Cylinder: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob/lever operates the latch.

Sold Individually

Select Function - Important Ordering Guide 3039: Full Dummy Set 3399: Single Cylinder Add  $284.80   Select Finish  US4: Satin Brass US10B: Oil Rubbed Bronze US26: Polished Chrome US15: Satin Nickel US19: Matte Black US3NL: Unlacquered Brass Add  $40.00   Select Door Thickness  1-3/4" Door Thickness 1-7/8" - 2-1/4" Door Thickness 2-3/8" - 2-3/4" Door Thickness   Select Backset - Important Ordering Guide 2-1/2" Backset 2-3/4" Backset   Select Interior Trim    LSFA: L-Square Faceted   TAKN: T-Bar Knurled Lever   TATR: T-Bar Tribeca Lever   TAHA: T-Bar Hammered Lever   FRL: Freestone Lever   GV: Geneva Lever   HLO: Helios Lever   DT: Dumont Lever   STU: Stuttgart Lever   POS: Poseidon Lever   MYL: Myles Lever   HEC: Hercules Lever   TRT: Triton Lever   SQU: Square Knob   BN: Bern Knob   ROU: Round Knob   HE: Hammered Egg Knob   FRK: Freestone Knob   MDC: Modern Disc Crystal Knob   MSC: Modern Square Crystal Knob   Select Door Handing & Door Swing - Important Ordering Guide Left Hand Door, Out-swing Left Hand Door, In-swing Right Hand Door, Out-swing Right Hand Door, In-swing   Keying - Important Ordering Guide Non-Keyed (Full Dummy Function) I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
