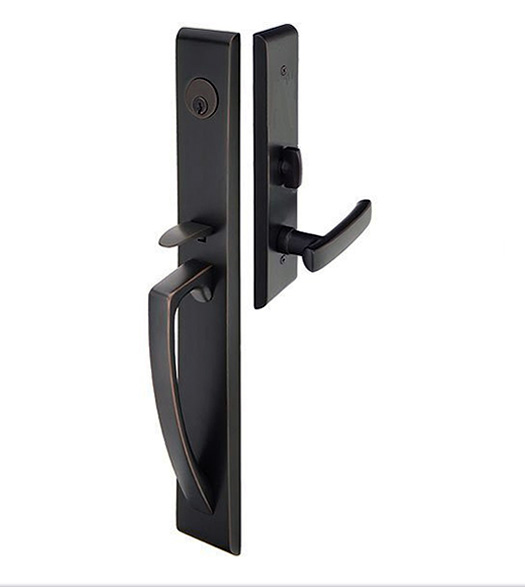

The Hera Mortise Handleset has a sleek look that makes it perfect for modern homes. The contemporary feel of this mortise front door lock is accentuated through its strong lines. Emtek's Hera Mortise Entrance Handleset is available in both dummy and single cylinder functions. The single cylinder ANSI F20 mortise box can be toggled to lock automatically upon closing the door. The Hera Mortise Entrance Handleset will fit either 2-1/2 inch or 2-3/4 inch backsets and can accommodate doors from 1-3/4 inches to 2-3/4 inches thick. This exterior door mortise-lockset is available in a huge selection of knobs and levers to choose from for the interior trim.

Features of the Emtek Hera Handleset and the ANSI F20 Heavy Duty Lock Body: Keyway: Schlage C UL 180 minute fire rating Deadlocking latch bolt with saw-proof inserts. Anti-pick security latch. When the deadbolt is engaged, the outside thumb press is automatically locked. The latch bolt is retracted by the thumb press / knob / lever on either side, except when the outside thumb press is locked by stop button, then it can only be opened from the exterior by use of the key. Making it ideal for doors you want to automatically lock. This feature can be easily toggled on and off by pressing the stop and release button on the mortise box face. Operating the interior trim retracts both the deadbolt and the latch bolt for emergency egress.

Specifications of the Emtek Hera Mortise Entrance Handleset:

• Material: Solid Brass
• Exterior Overall Height: 18-1/2"
• Exterior Width: 2-1/2"
• Exterior Grip Thickness: 1"
• Exterior and Interior Plate Thickness: 1/2"
• Interior Height: 10-1/4"
• Interior Width: 2-1/2"
• Door Thickness: 1-3/4" - 2-3/4" please specify
• Backset: either 2-1/2" or 2-3/4"
• Emtek 3345 Specifications (PDF)
• Emtek ANSI F20 Mortise Box Specifications (PDF)
• Emtek ANSI F20 Mortise Installation Instructions (PDF)

When Selecting a Function:

• Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
• Single Cylinder: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob/lever operates the latch.

Sold Individually

Select Function - Important Ordering Guide 3045: Full Dummy Set 3345: Single Cylinder Add  $282.40   Select Finish  US10B: Oil Rubbed Bronze US15: Satin Nickel US19: Matte Black US26: Polished Chrome US4: Satin Brass US3NL: Unlacquered Brass Add  $40.00   Select Door Thickness  1-3/4" Door Thickness 1-7/8" - 2-1/4" Door Thickness 2-3/8" - 2-3/4" Door Thickness   Select Backset - Important Ordering Guide 2-1/2" Backset 2-3/4" Backset   Select Interior Trim    ATN: Athena Lever   BA: Basel Lever   GV: Geneva Lever   HEC: Hercules Lever   HLO: Helios Lever   HER: Hermes Lever   LU: Luzern Lever   MC: Mercury Lever   POS: Poseidon Lever   SIO: Sion Lever   STU: Stuttgart Lever   TRT: Triton Lever   AG: Argos Lever   BN: Bern Knob   OCT: Octagon Knob   OR: Orb Knob   ROU: Round Knob   SQU: Square Knob   BL: Bristol Clear Crystal Knob   HT: Hampton Clear Crystal Knob   WS: Windsor Clear Crystal Knob   Select Door Handing & Door Swing - Important Ordering Guide Left Hand Door, Out-swing Left Hand Door, In-swing Right Hand Door, Out-swing Right Hand Door, In-swing   Keying - Important Ordering Guide Non-Keyed (Full Dummy Function) I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
