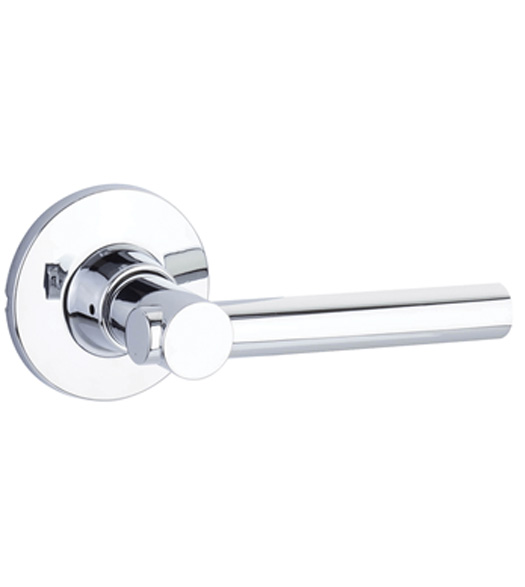

Yale YOWN-NIL, Yale Expressions Modern Holden Lever with Owen Rosette
The Holden Lever with Modern Owen Rose will fit many pre-drilled doors. The Owen Rosette with Holden Lever will fit 5-1/2 inch center to center prep and comes packaged with an adjustable latch to fit 2-3/4 inch or 2-3/8 inch backsets. It is also adjustable to fit standard door thicknesses from 1-3/8 inches to 1-3/4 inches. Choose from only the most popular finish color options. The Yale Expressions Modern Holden Lever with Owen Rosette is perfect for any home remodel project.
Features of the Contemporary Holden Door Lever with Modern Round Rose:
- Fits standard door cut outs (2-1/8" pre-drilled doors).
- Solid brass lever and trim rose.
- Sold as complete set.
- Easy to install.
Specifications of the Modern Holden Leverset with Owen Rose:
- Material: Brass
- Lever Length: 4-1/8"
- Lever Projection: 2-1/4"
- Clearance: 1-5/8"
- Rose Diameter: 2-1/2"
- Door Thickness: adjustable for 1-3/8" - 1-3/4"
- Backset: adjustable 2-3/8" or 2-3/4"
- Handing: non-handed
- Keyed Entry has a Schlage C keyway.
- Yale YOWN-HLD Specifications (PDF)
Available Functions:
- Double Dummy: No door latch. Door levers on both sides of the door.
Lever is surface mounted (rosette screws to the door's face). Package Includes:
2 levers, 2 roses, and mounting screws.
- Passage (Hall or Closet): For doors that don't need locking. Latch
operates from either side of door. Package Includes: 2 levers, 2 roses, door latch,
strike plate, dust box, faceplate, spindle, and mounting screws.
- Privacy (Bedroom or Bathroom): For doors that could need privacy locking.
Latch operates from either side. Turnbutton on interior lever engages privacy lock
on both levers; emergency release hole is on exterior lever. Package Includes:
2 levers, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
- Keyed: Guarded latchbolt operated from outside by key; inside by lever.
Turnbutton on the interior locks outside lever. Outside lever unlocks by key.
Complete set - 2 levers, 2 roses, 2 keys, door latch and strike plate.
Sold Individually
|
