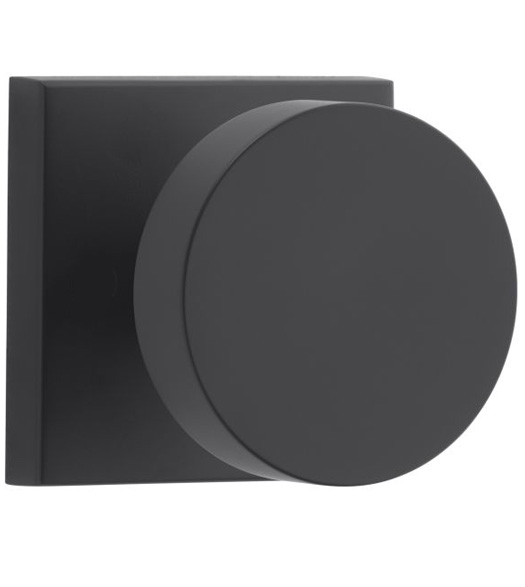

This NEW Baldwin Reserve Contemporary Knob has a square rose. It is available in a wide array of modern finish color choices. Choose from dummy, privacy, passage, and keyed functions. The Contemporary Knob with Square Rose will fit most standard pre-drilled doors. Its style is captivating, its quality is what makes lifetime owners of Baldwin Hardware.

Features of the Baldwin Reserve Contemporary Knob with matching Contemporary Square Rosette:

• 2-1/8" cross bore and 1" edge bore for latch
• Latch Bolt: 1/2"
• Strike: square corner
• Keyed entry features the Baldwin 5-pin tumbler C keyway.
• Tested to exceed ANSI/BHMA Grade 2 Security.
• Warranty: 25 year finish warranty and a limited lifetime mechanical warranty.

Specifications of the Contemporary Knobset:

• Knob Diameter: 2-11/32"
• Projection: 2-5/32"
• Keyed Entry Projection: 2-3/16"
• Rose Length: 2-9/16" Square
• Door Thickness: 1-3/8" - 2" standard with optional thick door kit for 2" - 2-1/2".
• Backset: Adjustable for 2-3/4" or 2-3/8"
• Latchbolt: 1/2"

When Selecting a Function:

• Half Dummy: A surfaced mounted, non-working knob. Non-locking and non-latching trim for one side of door. This inactive pull is usually used to match trim.
• Full Dummy: Non-working knobs. Non-locking and non-latching trim for both sides of door. These inactive pulls are usually used to match trim.
• Passage (hall or closet): Latches but does not lock. The latch is activated by turning the either of the two knobs.
• Privacy (bedroom or bathroom): Latches and can be locked. Can be locked from the inside with a push-button.
• Keyed Entry: Use when a keyed lock is needed. An ANSI/BHMA A156.2 Grade 2 security lock that is operated by a key from the exterior and a turnbutton on the knob from the interior. Complete set - 2 knobs, 2 roses, 2 keys, door latch and strike plate.

Sold Individually. Interior roses and Half Dummy roses have exposed screws.

Select Function - Important Ordering Guide HD: Half Dummy FD: Full Dummy Add  $82.40 PS: Passage (hall or closet) Add  $82.40 PV: Privacy (bedroom or bathroom) Add  $82.40 EN: Keyed Entry Add  $139.20   Select Finish  190: Satin Black 112: Venetian Bronze 260: Polished Chrome 055: Polished Nickel PVD 150: Satin Nickel 044: Satin Brass PVD   Select Door Thickness  STD: 1-3/8" - 2" Door Thickness THK: 2" - 2-1/2" Door Thickness Add  $8.00   Select Keying - Important Ordering Guide Non-Keyed (half dummy, full dummy, passage, and privacy) I only ordered one Lock Keyed Differently Keyed Alike Add  $5.50
