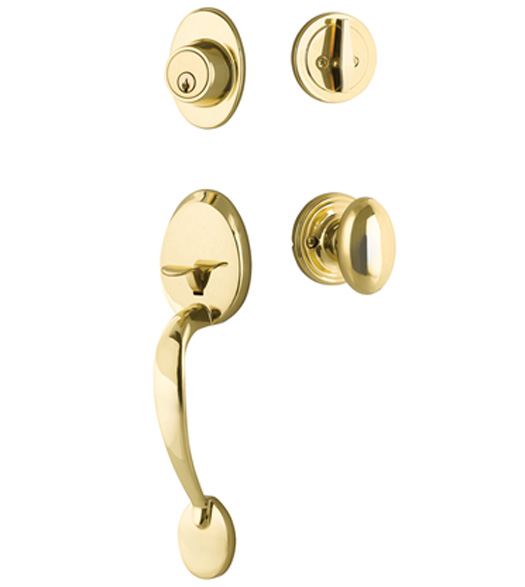

The Oval Maguire Handleset with Auburn Knob is a traditionally styled front door lock well suited to almost any application. It is easy to install and will adjust to fit standard door thicknesses of 1-3/8 inches to 1-3/4 inches with backsets of 2-3/8 inches or 2-3/4 inches. The Maguire Entry Door Handleset with Auburn Knob is a single cylinder handleset. It features an oval silhouette and an egg-shaped knob--one of the most iconic door hardware pairings of all time.

Single Cylinder: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob operates the latch.

Specifications for the Yale Expressions Maguire Entrance Handleset:

• Material: Brass
• Keyway: Schlage C
• Center to Center Door Prep: 5-1/2"
• Exterior Deadbolt Plate Width: 2-1/2"
• Exterior Top Plate Width: 2-7/8"
• Exterior Bottom Plate Width: 1-13/16"
• Exterior Projection: 2-7/16"
• Exterior Grip Clearance: 2-1/8”
• Interior Deadbolt Diameter: 2-1/2"
• Interior Trim Diameter: 2-1/2"
• Interior Knob: 1-3/4"
• Interior Knob Projection: 2-3/4"
• Door Thickness: adjustable for 1-3/8" - 1-3/4"
• Backset: adjustable 2-3/8" or 2-3/4"
• Door Specs: 2-1/8” face bore, 1” edge bore, 1” x 2-1/4” radius corner
• Handing: non-handed
• Keyway: Schlage C
• Yale YMGR44-ABN Specifications (PDF)

Sold Individually

Select Finish    US15: Satin Nickel   US26: Polished Chrome   US10B: Oil Rubbed Bronze   US3: Polished Brass   Keying - Important Ordering Guide I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
Quantity
