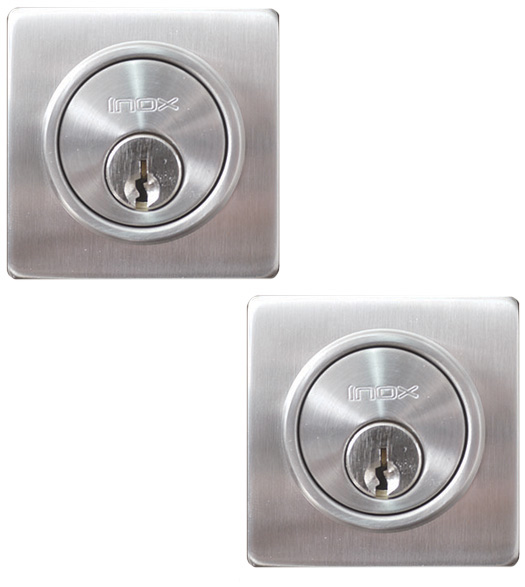

This Square Double Cylinder Deadbolt is made from wrought stainless steel and is available in satin stainless steel, polished stainless steel, and oil rubbed bronze finishes. The Stainless Steel 2-3/8 Square Deadbolt will fit most standard pre-drilled doors. It is easy to install and accommodates doors that are 1-3/4 inches thick with 2-3/4 inch or 2-3/8 inch backsets. The INOX LD Series Deadbolt is a double cylinder deadbolt, meaning it is locked and unlocked by a key from both sides. Double cylinder deadbolts are most often used on doors that have glass windows.

Double Cylinder: The deadbolt is thrown and retracted by a key from both the exterior and the interior

Features of the Square Wrought Stainless Steel Door Lock:

• Keyway: Schlage C, 5-pin
• Fits most standard door cut outs (2-1/8" pre-drilled doors).
• Concealed M5 thru-bolt installation.
• For residential or light-duty commercial applications.

Specifications of the INOX LD320B 2-3/8" Square Deadbolt:

• Material: Wrought Stainless Steel
• Length: 2-3/8" Square
• Exterior Projection: 5/8"
• Thumbturn Width: 23/32"
• Deadbolt" 1" throw
• Door Thickness: 1-3/4"
• Backset: 2-3/8" or 2-3/4"
• INOX LD320B Dimensions Diagram (PDF)

Select Finish  US32D: Satin Stainless Steel US32: Polished Stainless Steel Add  $8.00 US10B: Oil Rubbed Bronze Add  $8.00   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Keying - Important Ordering Guide I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
Quantity
