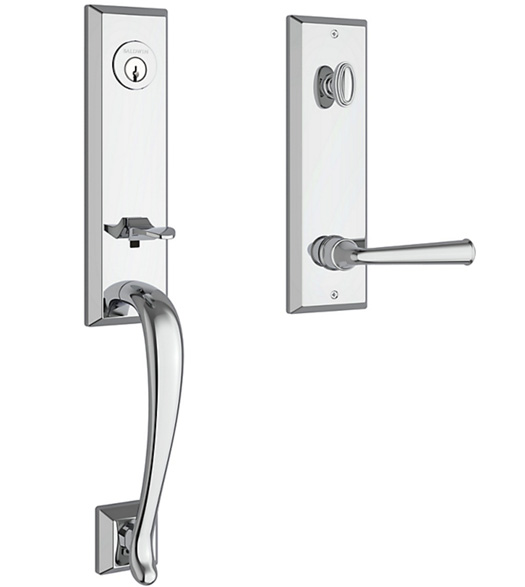

The Del Mar Handleset comes with a matching square bevel escutcheon for the interior trim, making it a great choice for transitional homes. With its finger on the pulse of the hottest look in home décor, this front door handle is a popular choice for designers and homeowners alike. It is backed by a lifetime manufacturer's warranty and a 25 year finish warranty. It is available in emergency egress single cylinder or dummy functions. Choose from any of the 6 interior trim options and an array of beautiful finish choices so that you can select the best fit for your personal style and your needs. The Del Mar Egress Handleset with Square Bevel Interior Trim will fit doors with thicknesses between 1-3/4 inches and 2-1/2 inches and it comes with an adjustable latch for 2-3/8 inch or 2-3/4 inch backsets.

Features of the Baldwin Reserve Collection Del Mar Handleset:

• Fits 2-1/8" cross bore for both deadbolt and grip with a 1" edge bore for both grip latch and deadbolt latch.
• Baldwin C-Keyway.
• Latch: square corner adjustable
• Strike: square corner
• Brass deadbolt features 1" throw.
• Warranty: 25 year finish warranty and a limited lifetime mechanical warranty.

Specifications of the Del Mar Entrance Set with Square Rose Interior Trim:

• Exterior Overall Length: 16-13/16"
• Exterior Top Plate Width: 2-11/16"
• Exterior Top Plate Length: 9-1/2"
• Exterior Grip Projection: 2-8/9"
• Interior Plate Width: 2-11/16"
• Interior Trim Height: 9-1/2"
• Distance between Deadbolt and Lever Latch: 5-1/2" c.c.
• Distance between Latch Bore to Bottom Mounting Hole: 8-13/32" c.c.
• Door Thickness: 1-3/4" - 2" standard with optional thick door kit for 2" - 2-1/2".
• Backset: Adjustable for 2-3/8" or 2-3/4"

When Selecting a Function:

• Single Cylinder Emergency Egress: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, the deadbolt is thrown by a thumbturn while the interior knob/lever opens the door without having to unlock the deadbolt.
• Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.

Select Function - Important Ordering Guide EE: Single Cylinder Emergency Egress FD: Full Dummy   Select Finish  260: Polished Chrome 055: PVD Polished Nickel 150: Satin Nickel 003: PVD Polished Brass 044: PVD Satin Brass 152: Matte Antique Nickel 112: Venetian Bronze 190: Satin Black   Select Door Thickness  STD: 1-3/4" - 2" Door Thickness THK: 2" - 2-1/2" Door Thickness Add  $16.80   Select Interior Trim    ROU: Round Knob   ELL: Ellipse Knob   TRA: Traditional Knob   CUR-RH: Curve Lever (right handing)   CUR-LH: Curve Lever (left handing)   FED-RH: Federal Lever (right handing)   FED-LH: Federal Lever (left handing)   DUN-RH: Dunsmoor Lever (right handing)   DUN-LH: Dunsmoor Lever (left handing)   Select Keying Options - Important Ordering Guide I only ordered one Non-Keyed (dummy) Keyed Differently Keyed Alike Add  $5.50
