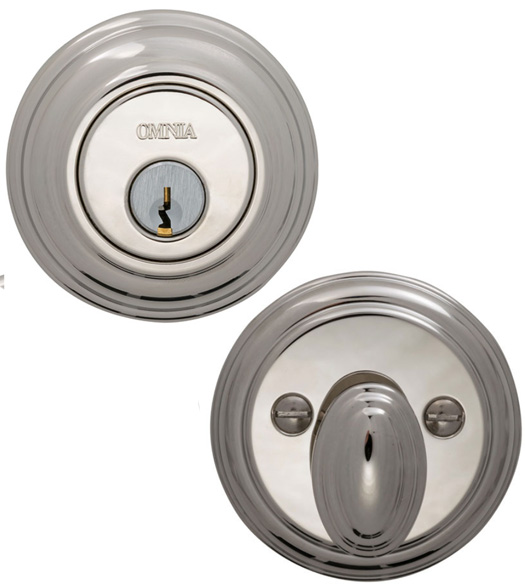

This Omnia made auxiliary deadbolt lock is the perfect compliment to traditional homes. A single cylinder deadbolt, the latch is thrown and retracted by a thumb turn on the interior and by a key from the exterior. The Omnia Prodigy collections Colonial Single Cylinder Deadbolt is available in a wide array of finishes. It is available for either 2-3/8" or 2-3/4" backsets with 1-3/8" or 1-3/4" door thicknesses.

Single Cylinder Deadbolt: Deadbolt thrown or retracted by key from the outside and by turn unit on the inside.

Features of the Omnia COLDB Colonial Round Deadbolt:

• Keyway: 5 pin, Schlage C Keyway
• Covers 2-1/8" bore hole.
• Reinforced door frame strike with 3" screws for extra security.
• 1" Throw deadbolt with hardened steel core.
• Omnia Prodigy Deadbolt Installation Instructions (PDF)

Specifications of the Omnia COLDB Colonial Round Auxiliary Deadbolt:

• Diameter: 2-1/2"
• Exterior Projection: 9/16"
• Interior Projection: 1-3/8"
• Strike Plate Width: 1-1/8"
• Strike Plate Length: 2-3/4"
• Backset: Optional 2-3/8" or 2-3/4"
• Door Thickness: Optional 1-3/8" or 1-3/4"

Sold Individually

Select Finish  US14: Polished Nickel US15: Satin Nickel US26: Polished Chrome US3A: Unlacquered Brass US3: Polished Brass US4: Satin Brass US5: Antique Brass US5A: Unlacquered Antique Bronze TB: Tuscan Bronze SB: Shaded Bronze US10B: Oil-Rubbed Bronze   Select Door Thickness  1-3/4" Door Thickness 1-3/8" Door Thickness   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Keying - Important Ordering Guide I Only Ordered One Keyed Different Keyed Alike Add  $10.00
Quantity
