| Item No: |
EMT-8058SF |
| List Price: |
$235.00 |
| Your Price: |
$188.99 |

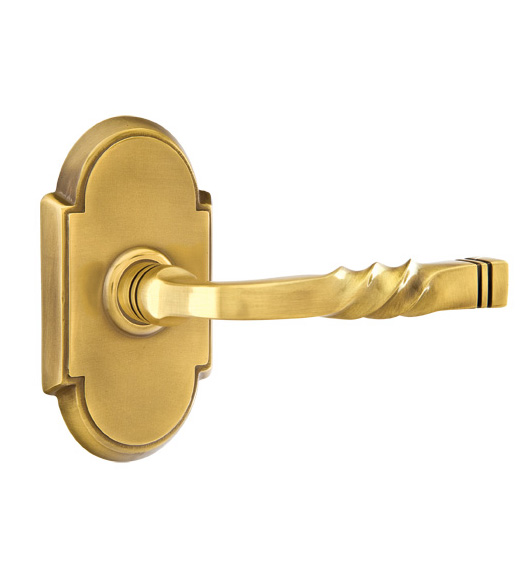

Emtek 8058SF, Santa Fe Lever with Arched Rose
The Santa Fe Lever with Arched Rose is interesting and beautiful. It is available in a wide array of traditional finish color options. The Santa Fe Lever with #8 Arched Rosette will fit most standard pre-drilled doors. Choose from dummy, passage, and privacy functions.
Features of the Santa Fe Lever with #8 Arched Rosette:
- Fits standard door cut outs (2-1/8" pre-drilled doors).
- Lever is surface mounted (rosette screws to the door's face).
- Solid brass lever and trim rose.
- Sold as complete set.
- Easy to install.
Specifications of the Santa Fe Leverset with Arched #8 Rosette:
- Material: Brass
- Lever Length: 4-5/8"
- Lever Projection: 2-3/4"
- Clearance: 2-1/4"
- Rose Height: 4-3/8"
- Rose Width: 2-9/16"
- Door Thickness: 1-1/4 - 3"
- Backset: 2-3/8" or 2-3/4"
Available Functions:
- Double Dummy: No door latch. Door levers on both sides of the door. Package Includes: 2 levers, 2 roses, and mounting screws.
- Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 levers, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
- Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy push button and retract the door latch. Package Includes: 2 levers, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
Levers are Handed. Handing Guide
|
