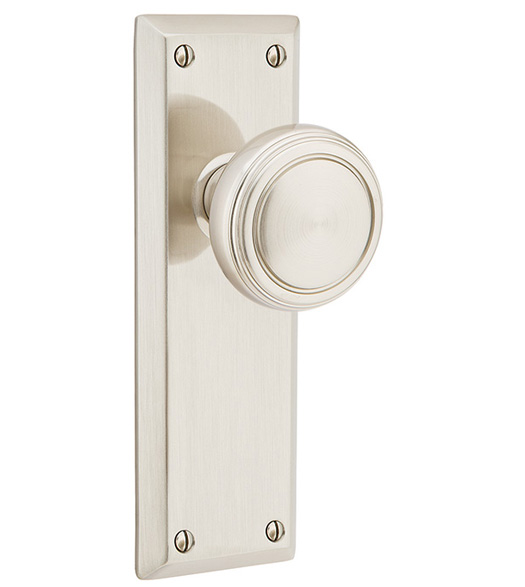

The 7-1/8 Inch Quincy Sideplate is an elegant statement piece that will be sure to add traditional glamor to your doors. This sideplate is available in a huge selection of finish colors with your choice of trim knob or lever. With so many options to choose from, you'll be sure to find the perfect match. The Quincy 7-1/8 Inch Non-keyed Sideplate is available in dummy, passage, and privacy functions.

Features of the 7-1/8 Inch Quincy Door Sideplate:

• Fits standard door cut outs (2-1/8" pre-drilled doors).
• Lever is surface mounted (rosette screws to the door's face).
• Solid brass trim and sideplate.
• Sold as complete set.
• Easy to install.

Specifications for the Emtek Quincy 7-1/8 Inch Sideplate:

• Material: Brass
• Overall Height: 7-1/8"
• Overall Width: 2-3/8"
• Plate Thickness: 3/8"
• Doors Thickness: 1-1/4" - 3"
• Backset: 2-3/8" or 2-3/4"
• Emtek 8054 Specifications (PDF)

Available Functions

• Double Dummy: No door latch. Door knobs / levers on both sides of the door. Package Includes: 2 knobs / levers, 2 sideplates, and mounting screws.
• Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 knobs / levers, 2 sideplates, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
• Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior sideplate. Turning inside knob / lever will release privacy push button and retract the door latch. Package Includes: 2 knobs / levers, 2 sideplates, privacy button, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.

Select Function - Important Ordering Guide 8054: Double Dummy 8104: Passage (Hall or Closet) 8204: Privacy (Bedroom or Bathroom)   Select Finish  US10B: Oil Rubbed Bronze US15: Satin Nickel US15A: Antique Nickel US19: Matte Black US26: Polished Chrome US7: French Antique US3: Polished Brass US3NL: Unlacquered Brass Add  $32.00   Select Door Thickness  1-1/4" - 1-15/16" Door Thickness 2" - 3" Door Thickness   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Handing - Important Ordering Guide Right Handing Left Handing   Select Trim    C: Cortina Lever   M: Milano Lever   T: Turino Lever   ME: Merrimack Lever   E: Egg Knob   P: Providence Knob   NW: Norwich Knob   W: Waverly Knob   LW: Lowell Clear Crystal Knob   WS: Windsor Clear Crystal Knob   HT: Hampton Clear Crystal Knob
