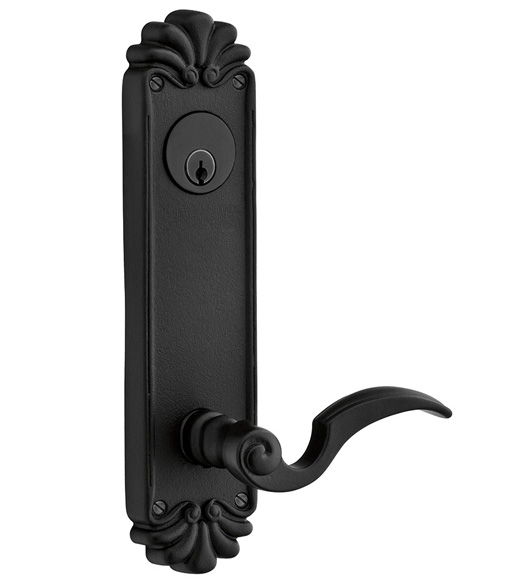

Emtek 6620, 5-1/2 Inch Center to Center Tuscany Lockset

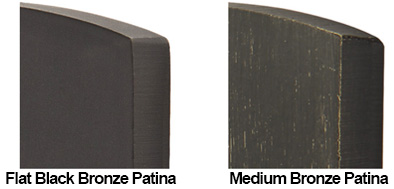

The 10-1/8 Inch #16 Tuscany Sideplate Lockset has 5-1/2 inch mounting centers, perfect for many pre-drilled doors. This Tuscany Entry Set is made from Cast Bronze and is available in flat back and medium bronze finishes. Choose from a wide array of old world levers and knobs. This truly unique entryset comes packaged as a complete set including 2 plates and 2 interior trim knobs or levers. Choose from a locking single cylinder sideplate or a dummy set that neither latches or locks (usually used on French doors ).
Features of the Lost Wax Cast Bronze Tuscany Entry Door Sideplate Lockset:
- Keyway: Schlage C
- Will fit standard 2-1/8" door preparations.
- Solid brass latch with saw-proof insert.
Specifications for the Emtek Tuscany Entry Set:
- Material: Cast Bronze
- Overall Height: 10-1/8"
- Bore Hole Spacing (distance between deadbolt and lever latch): 5-1/2" Center to Center
- Overall Width: 2-7/16"
- Plate Thickness: 3/8"
- Doors Thickness: 1-5/8" - 3"
- Backset: 2-3/8" or 2-3/4"
- Deadbolt: Full 1" Throw
- Emtek 6620 Specifications (PDF)
Available Functions
- Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
- Single Cylinder: From the exterior, a knob/lever operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob/lever operates the latch.
|
