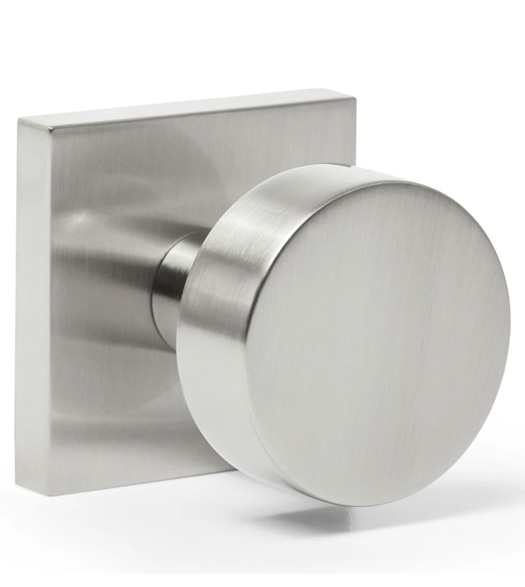

Arriving on the scene is the Miami Knob Modern Edition. This contemporary knobset combines all the most sought after traits of modern door hardware into one easy to install--easy to order knobset. The Miami Knob with Square Rose is available in dummy, passage, and privacy functions and comes in a gorgeous satin nickel finish. It will fit most pre-drilled doors,

Features of the Explore Hardware Miami Knob:

• Fits standard door cut outs (2-1/8" pre-drilled doors).
• Solid metal knob and trim rose.
• Sold as complete set.
• Easy to install.

Specifications of the Miami Modern Knobset with Square Rose:

• Material: Brass
• Finish: Satin Nickel
• Knob Diameter: 2.03" (51.6mm)
• Knob Thickness: .075" (19.1mm)
• Knob Stem Diameter: 0.83" (21mm)
• Knob Projection: 1.88" (47.6mm)
• Rose Length: 2.36" (59.9mm) square
• Rose Projection: 0.39" (10mm)
• Door Thickness: 1-3/8’’ to 1-3/4"
• Backset: 2-3/8" or 2-3/4"
• Handing: non-handed
• AHI Miami Dimensions Diagram (PDF)

Available Functions:

• Single Dummy: No door latch. Door knob on one side of the door. Visible surface mounting screws. Package Includes: 1 knob, 1 rose, and mounting screws.
• Double Dummy: No door latch. Door knobs on both sides of the door. Visible surface mounting screws on interior and exterior. Package Includes: 2 knobs, 2 roses, and mounting screws.
• Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Visible mounting screws on interior. Package Includes: 2 knobs, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
• Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Privacy pin on interior rose engages privacy; emergency release hole is on exterior rose. Visible mounting screws on interior. Package Includes: 2 knobs, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.

Sold Individually

Select Function - Important Ordering Guide SD: Single Dummy PA: Passage (hall or closet) Add  $25.50 PV: Privacy (bedroom or bathroom Add  $25.50   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset
Note: This item is either Special Order or has been Discontinued. Please Contact Us.
Quantity
