Heavy duty surface vertical rod exit device for use on narrow stile doos in medium and high traffic commercial, hospitality, institutional applications. Suitable for all doors (aluminum, hollow metal, or wood), durable enough for the most demanding applications. Available in your choice of Satin Stainless Steel, Satin Chrome, Polished Brass, Flat Black, or Dark Bronze finish.

For 30" - 36" Wide Doors, furnished standard with wood and machine screws, optional sex bolts available. Listed for UL 305 Panic and UL 10C Fire Exit Hardware up to 3 hours. ANSI/BHMA Certified Grade 1, A156.3 2001 Exit Devices. Non-handed. reversible for left or right hand doors.

Meets requirements of the Buy American Act. ADA compliant and ICC/ANSI 117.1 for accessible and usable buildings. Compliant with FL #40297 +50/-50 psf 8080 18ga pair.

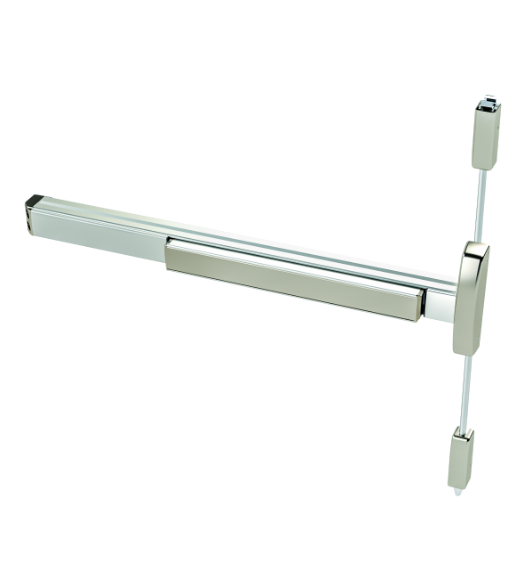

Specifications for PDQ 6400V Surface Vertical Rod Exit Device

• Rail: Extruded aluminum
• Top Latch Bolt: Stainless Steel 3/4" Toggle
• Bottom Latch Bolt: 5/8" Travel Drop Bolt
• Hand: Device is non-handed
• Dogging: Hex key dogging standard, cylinder dogging available
• Application: Surface Vertical Rod (7'0" tall door standard)
• Minimum Stile Width: 3-1/8" with standard strike, 2-1/8 on aluminum frames with optional blade stop strike
• Door Thickness: 1-3/4"-2"
• Door Width: Standard 3'0" door maximum
• Door Height: Standard Up to 7' High Door.
• Certifications: Listed for UL 305 Panic and UL 10C Fire Exit Hardware up to 3 hours. ANSI/BHMA Certified Grade 1, A156.3 2001 Exit Devices. Meets requirements of the Buy American Act. ADA compliant and ICC/ANSI 117.1 for accessible and usable buildings. Compliant with FL #40297 +50/-50 psf 8080 18ga pair.
• Warranty: Ten (10) year limited manufacturer warranty mechanical components

Available Exterior Trim:

• Rim Lock Cylinder: Night Latch Function (ANSI F03) - Includes rim cylinder or IC Rim Housing, collar, and required mounting hardware. Unlatch (Open) door from exterior with Key. Key removable only when locked.
• Escutcheon Plate Passage Lever: Passage Function (ANSI F14) - Outside entrance by lever for doors that don't need locking. Narrow Escutcheon Plate (1-13/16" wide x 9" high) with ADA compliant Lever.
• Escutcheon Plate Keyed Storeroom Lever: Storeroom Function (ANSI F09) - Outside entrance by lever when latch bolt is retracted by Key. (Lever only opens door when the key is turned). Key removable only when locked. Narrow Escutcheon Plate (1-13/16" wide x 9" high) with ADA compliant Lever.
• Escutcheon Plate Keyed Classroom Lever: Classroom Function (ANSI F08) - Outside lever locked and unlocked by Key. Narrow Escutcheon Plate (1-13/16" wide x 9" high) with ADA compliant Lever.
• Dummy Handle Pull: Dummy Function - Used as a door pull only. Does NOT cover pre-drilled 2-1/8" bore hole.
• Thumb Latch Keyed Storeroom Handles: Storeroom Function (ANSI F06) - Outside entrance by thumb press when latch bolt is released by Key. (Thumb press only opens door when the key is turned). Key removable only when locked.
• Thumb Latch Keyed Classroom Handles: Classroom Function (ANSI F05) - Outside entrance by thumb press when latch bolt is unlocked by Key. (Thumb press locked or unlocked by key).

Select Exterior Trim    No Outside Trim Needed   6C-03: Rim Cylinder only Add  $93.10   6-N-14: Passage Escutcheon Plate Lever Add  $274.40   6-N-06: Keyed Storeroom Escutcheon Plate Lever Add  $317.80   6-N-08: Keyed Classroom Escutcheon Plate Lever Add  $317.80   6T-02: Dummy Handle Pull Add  $247.10   6T-06: Keyed Storeroom Thumb Latch Handle Add  $264.60   6T-05: Keyed Classroom Thumb Latch Handle Add  $264.60   Select Finish  630: Satin Stainless Steel 626: Satin Chrome Add  $30.10 605: Polished Brass Add  $94.50 622: Flat Black Add  $30.10 613E: Dark Bronze Add  $30.10   Select Optional Fire Rating  6400V: Non-Fire Rated Hex Key Dogging 6400VF: Fire Rated No Dogging Add  $113.40   Select Optional Vertical Rod Extension  Standard: Up to 7' Door 6312128SVR: Up to 8' High Door Add  $61.60 631212-36EXT: Up to 10' High Door Add  $61.60   Keying - Important Ordering Guide Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
