Bommer
Satin Chrome Mortise Mount Brass Spring Door Pivot Hinge with Adjustable Tension, Bommer 7322
$504.56
/ unit
Out of Stock — Notify me
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

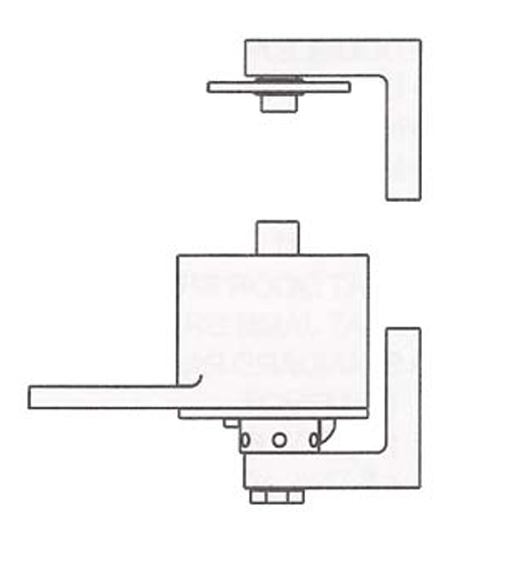

The Bommer 7322-626 is a Satin Chrome Mortise Mount Spring Door Pivot Hinge, constructed from cast brass. This unit provides mortised applied support for doors requiring adjustable tension.
Designed for maximum structural integrity, the hinge supports doors up to 36 inches wide and 2-1/2 inches thick, accommodating door weights up to 75 lbs. Each set includes the pivot, jamb bracket, door bracket, and mounting hardware.
Material & Finish
Finish
626 Satin Chrome
Other
Maximum Door Width
36"
Maximum Door Thickness
2-1/2"
Maximum Door Weight
75 lbs.
Maximum Swing
130º each direction
Flat Door Bracket
For doors not less than 1" thick
Flat Jamb Bracket
1-1/4" Wide
Questions about this product? Call 954-776-5340 or send us a message below.
