Don-Jo

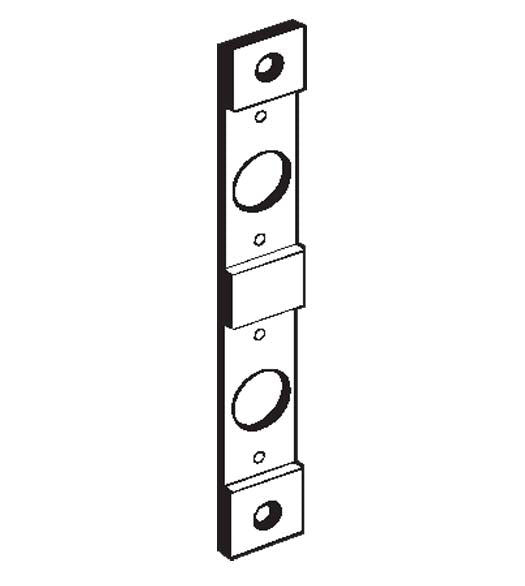

Mortise Lock Conversion Plate, Don-Jo CV-8624

SKU: DJO-CV-8624-PC
$31.68 $39.60Save $7.92/ unit
In Stock — Estimated Shipping 1–2 business days
Contractor or designer? Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

The Don-Jo CV-8624-PC Mortise Lock Conversion Plate allows conversion from a single 86 cut out to two 161 cut outs, accommodating a standard tube latch and deadbolt latch.

This filler plate screws into the door edge, replacing the existing mortise lock box to facilitate installation of standard door hardware.

Also available: With single hole, Don-Jo CV-86 Mortise Lock Conversion Plate

Don-Jo CV-8624 mortise conversion plate size
Material & Finish
Material Steel
Finish Primer
Other
Plate Height 8"
Plate Width 1-1/4"
Latch Hole Spacing 4" Center to Center
Screws (2) each #12-24 x 1/2" Flat Head Machine Screws

Questions about this product? Call 954-776-5340 or send us a message below.
